EMERSONUPS.IN
Your Gateway to Emerson UPS Systems in India
Ensuring Business Continuity with World-Class Power Protection Solutions
Zero Transfer Time
Our Online Double Conversion technology ensures your equipment never feels a power cut. It delivers a seamless transition from mains to battery with zero delay, shielding your sensitive data from even the smallest glitches.
Maximum Energy Efficiency
Designed with a high power factor, these units convert more input power into usable output. This means less wasted energy, lower electricity bills, and the ability to support more devices on a smaller footprint.
Smart Battery Health
The Intelligent Battery Management system uses advanced charging to prevent overcharging and extend battery life by up to 50%. You get real-time health alerts so you’re never caught off guard by a failing battery.
list of all EmersonUPS PRODUCTS
Select from a wide range of options
Liebert® EXS™ 10-80kVA
Maximize your floor space without compromising on power. The Liebert® EXS™ offers high-density, transformer-free protection for mission-critical reliability in a compact footprint.

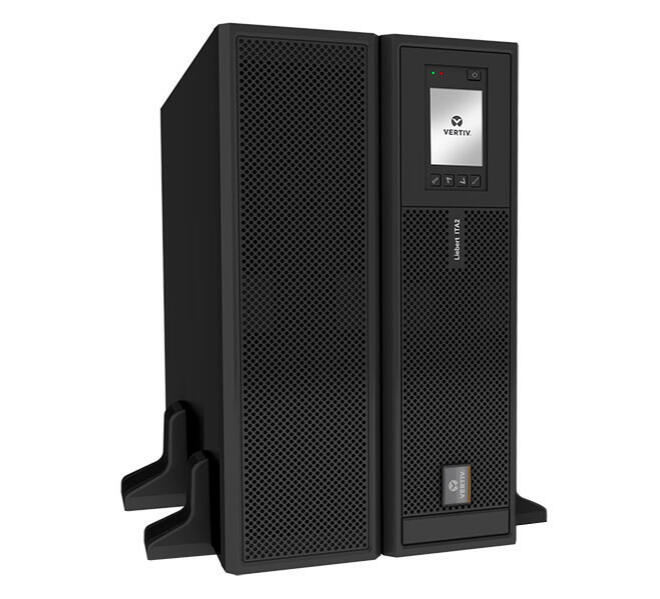

Liebert® ITA2 UPS 1-3 kVA
The Emerson Liebert® ITA2 (1–3 kVA) series is a transformer-free UPS providing compact, efficient, and dependable power protection for sensitive electronic equipment.
Liebert EXM2
The Emerson Liebert® EXM2 is a monolithic UPS built for the evolving needs of mid-size critical infrastructure. It combines high reliability with peak efficiency to protect next-generation power applications.
Emerson PowerUPS 9000
The Emerson PowerUPS 9000 offers a compact, high-density solution for modern IT needs. It delivers superior energy efficiency across a broad spectrum of applications, from legacy computing environments to high-performance edge networks.

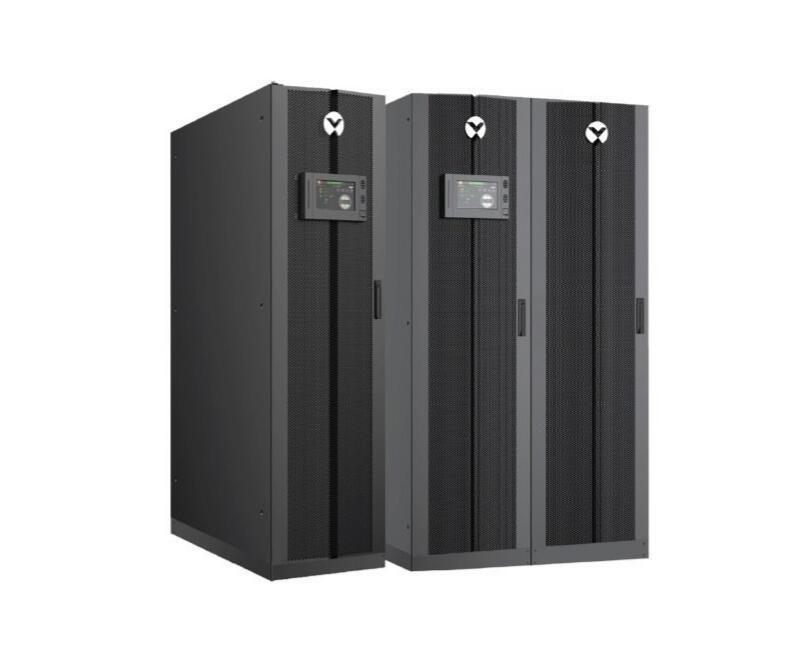

Liebert® APM2 30-600kW
The Emerson Liebert® APM2 is a next-generation, modular, transformerless UPS featuring high power density. Its advanced capabilities are designed to provide seamless scalability and maximum availability for rapidly expanding data centers.
Liebert® EXL S1 UPS 300-1200kW
The Emerson Liebert® EXL S1 UPS delivers robust, premium load protection for large-scale infrastructure. Engineered for maximum energy efficiency, it provides the resilient power foundation necessary to support the intensive demands of AI and high-performance computing.

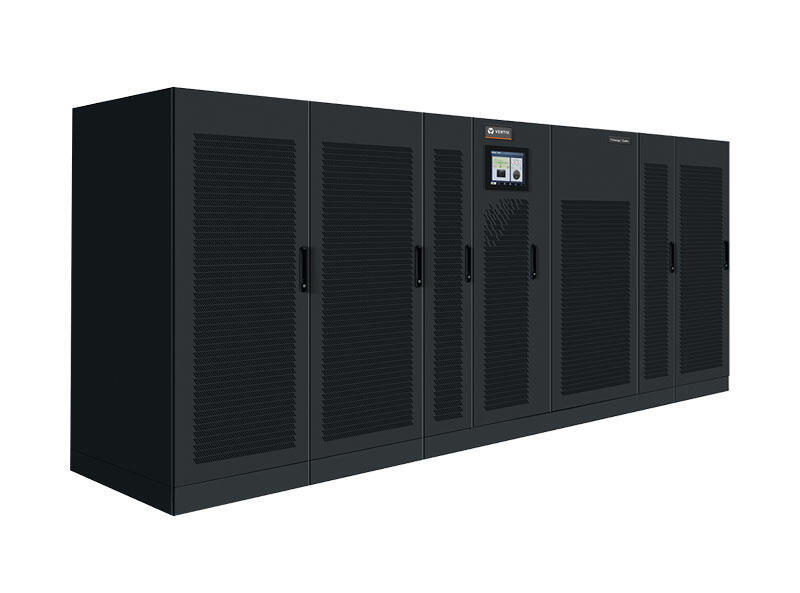

Liebert® Trinergy Cube UPS, 150 kW-3.4 MW
The Liebert® Trinergy™ Cube represents the next evolution in modular UPS technology. Engineered for the vast scale of modern enterprise data centers, its unique three-dimensional modularity allows you to scale power capacity seamlessly as your business demands grow.
Emerson Liebert® APM Plus
Introducing the latest Liebert® APM Plus—a scalable, high-power-density, transformer-free UPS engineered for superior efficiency and performance. Delivering up to 97% double-conversion efficiency, it drastically reduces energy dissipation and operational costs, making it the most compact...
Liebert S600D 3x1 10/20kVA
The Liebert® S600 is a fully digital, high-reliability, double-conversion UPS designed to provide clean, stable, and continuous power. With high efficiency and flexible deployment options, it ensures maximum protection for sensitive IT equipment and mission-critical network infrastructure.
Liebert ITA2 UPS
In an ever-evolving marketplace, simple power protection is no longer enough.

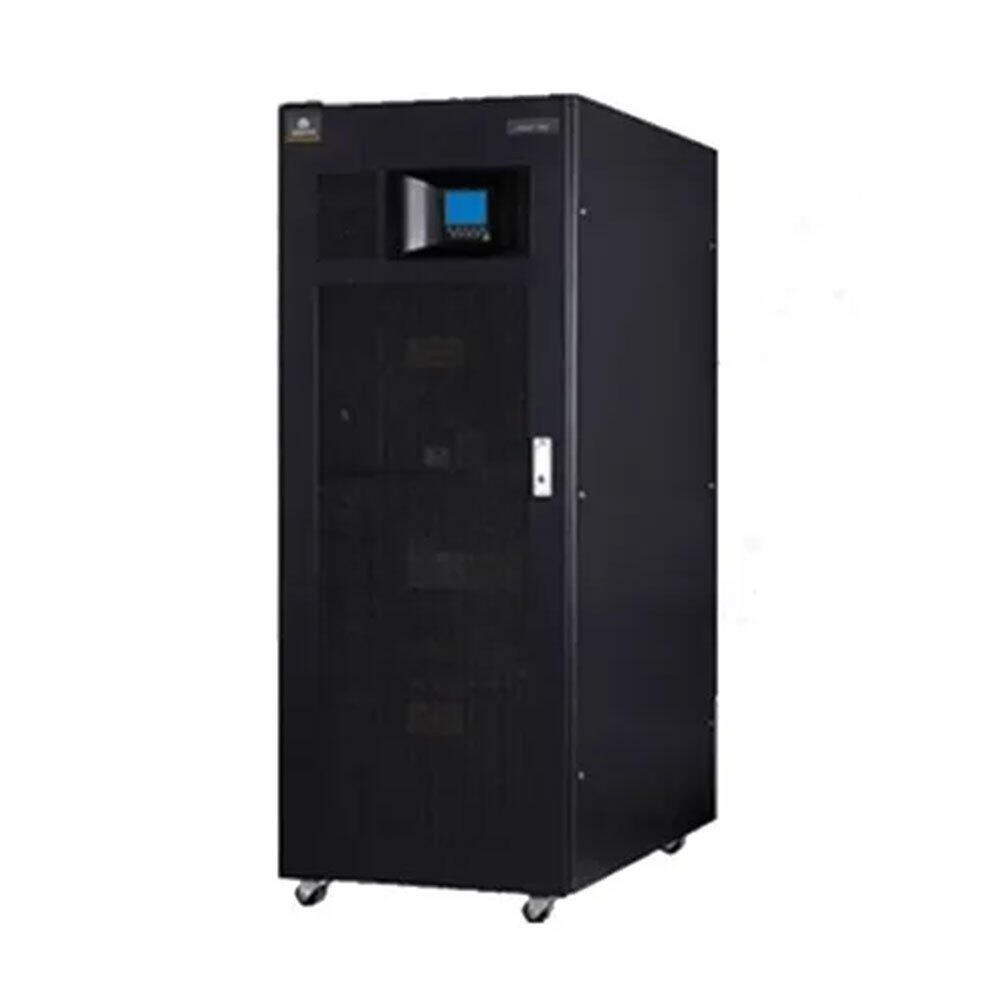

Liebert® GXTMT+ LX (3 X 3) 10KVA
The Liebert® GXT MT+ LX (3x3) is a premier UPS solution, purpose-built to combine maximum space-efficiency with

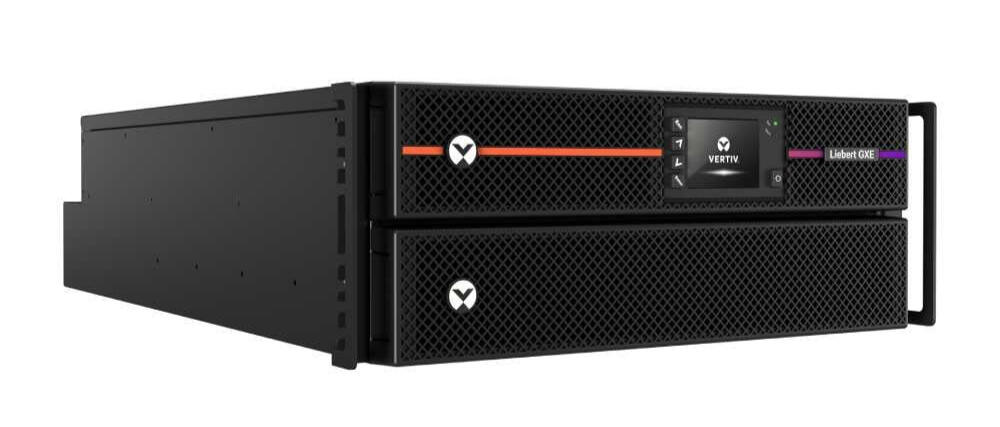

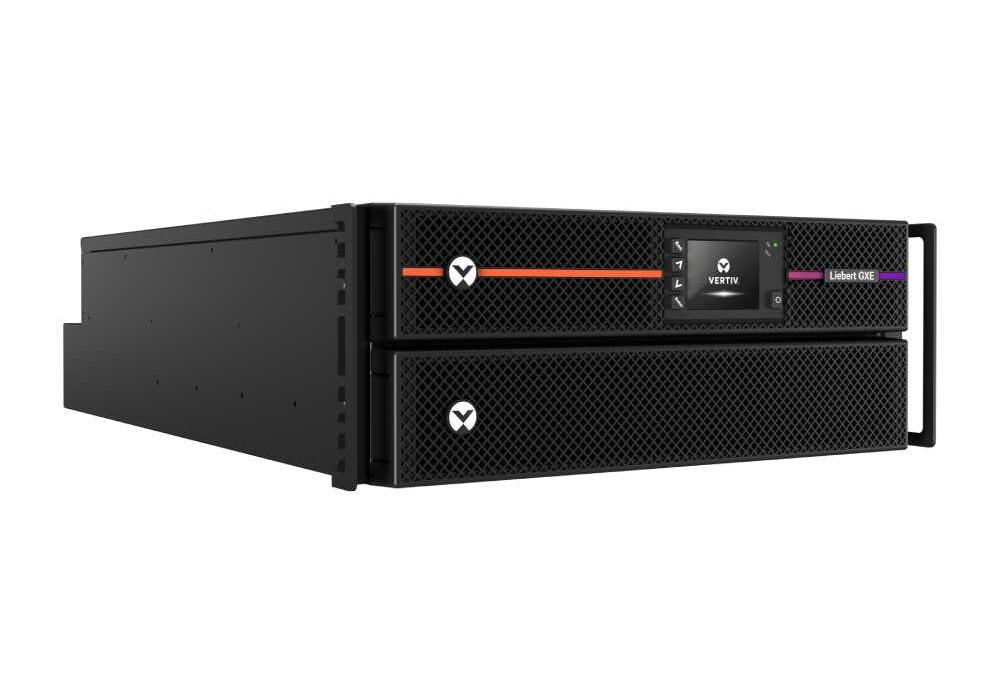

Liebert® GXE 6000VA UPS
The Emerson Liebert® GXE offers premium online double-conversion protection in an affordable package. It is the ideal cost-effective solution for small-to-medium IT environments...

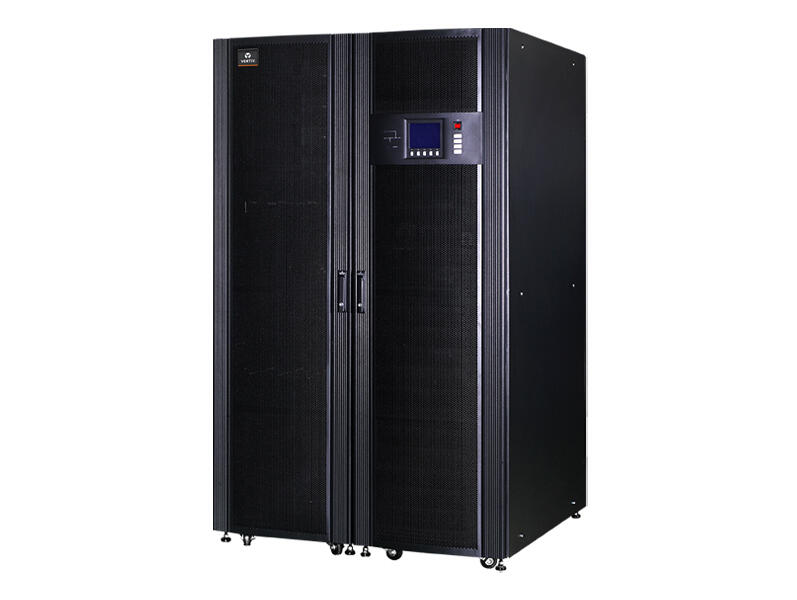

Liebert APM 30kW - 300kW
The Liebert® APM is an ultra-compact, high-density UPS purpose-built for small-to-medium computer rooms. It maximizes every square inch of your facility,..
Liebert APM 400kW - 600kW
The Liebert® APM series is a transformer-free, online double-conversion system engineered for maximum availability. By utilizing a modular, redundant architecture, it ensures that your critical...

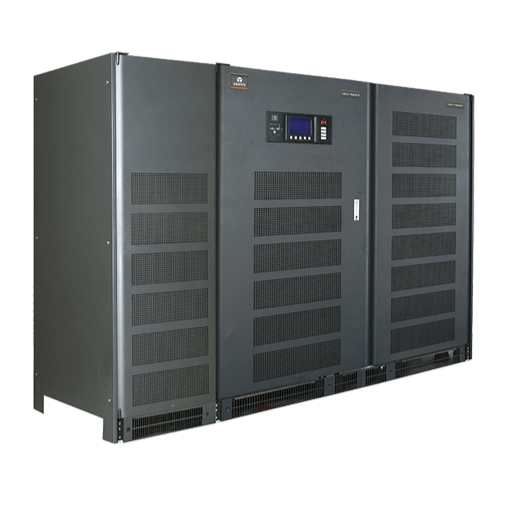

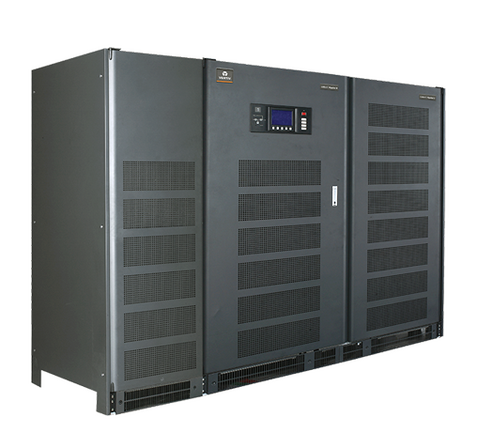

Liebert HIPULSE-U 30kVA - 500kVA
The Liebert® Hipulse-U™ provides a rugged and dependable power foundation, ensuring continuous availability for the most demanding critical applications.

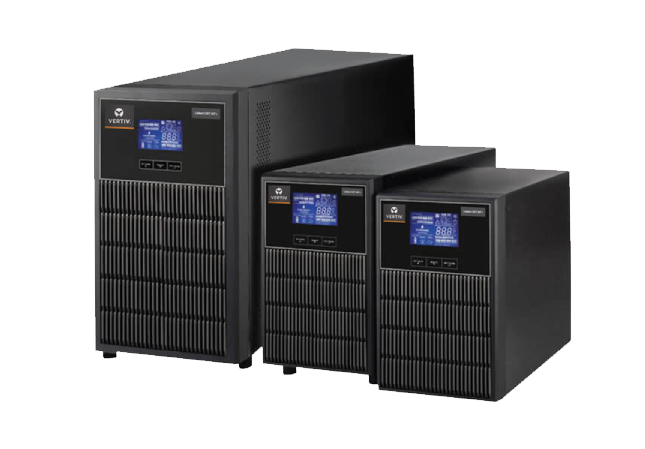

Liebert GXT MT+ 1/2/3Kva
The Liebert® GXT MT+ Series features true online double-conversion technology in 1, 2, and 3 kVA capacities. Engineered to provide a total 'electrical firewall,
Liebert GXT MT+ 3x1 10/20kVA
The Liebert GXT MT+ Series is a true double-conversion online UPS, available in 6, 10, and 20 kVA capacities.
Liebert® GXT MT+ EX 6kVA/10kVA
The Liebert® GXT MT+ EX (6–10 kVA) is a high-performance, transformer-free UPS engineered for maximum resilience.

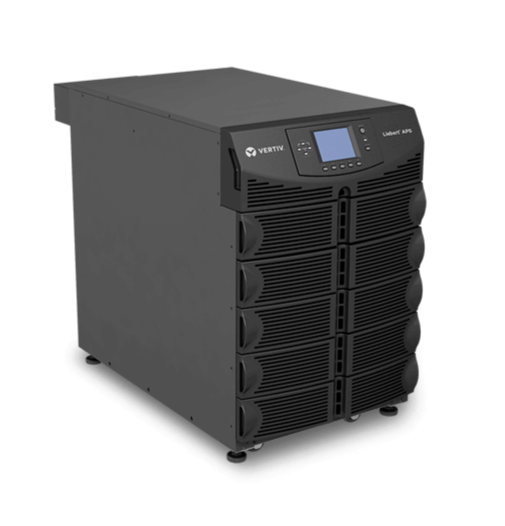

Liebert APS 5kVA - 20kVA
The Liebert® APS allows you to scale your power protection in step with your business growth. It future-proofs your infrastructure with a modular design that ensures maximum availability
Liebert S600E 3x3 10/20kVA
Driven by advanced DSP control, the Liebert® S600E is a high-reliability, double-conversion UPS engineered to deliver unwavering, medical-grade power. It provides a clean and stable foundation for

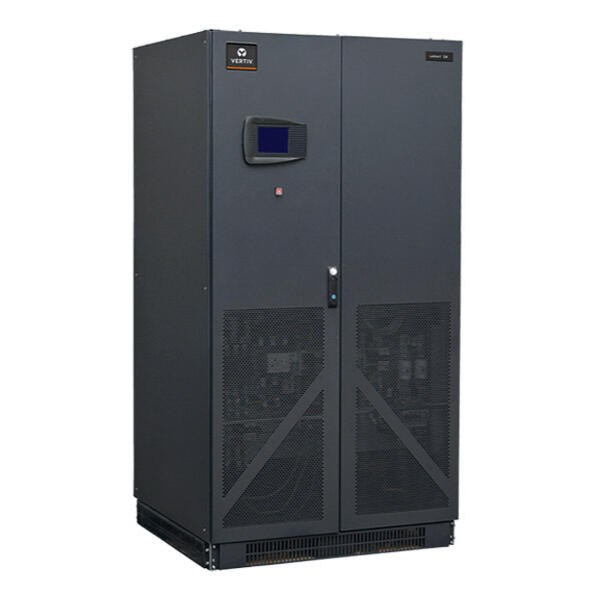

Liebert SX 60kVA - 200kVA
By leveraging full IGBT-based double-conversion technology, the Liebert® SX™ significantly reduces installation and operating costs.
Emerson HPL Lithium-Ion Battery Energy Storage System
Designed by data center experts for data center users, the Emerson HPL battery cabinet leverages...

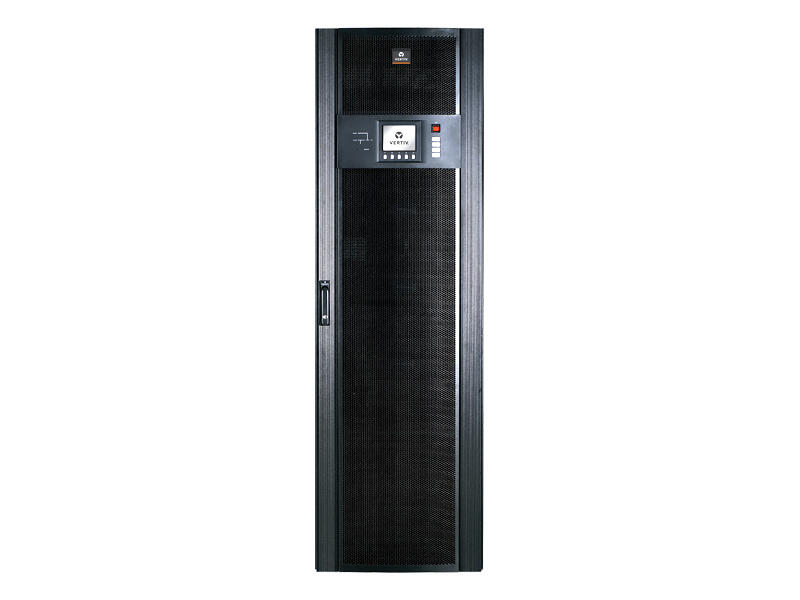

Liebert APM 18kW - 90kW
Prevent power interruptions and ensure the future flexibility and efficiency of your data center infrastructure with Liebert APM UPS.
Emerson HPL P1
The Emerson HPL P1 is designed to deliver safe, dependable, and economical high-power energy, enhancing critical...

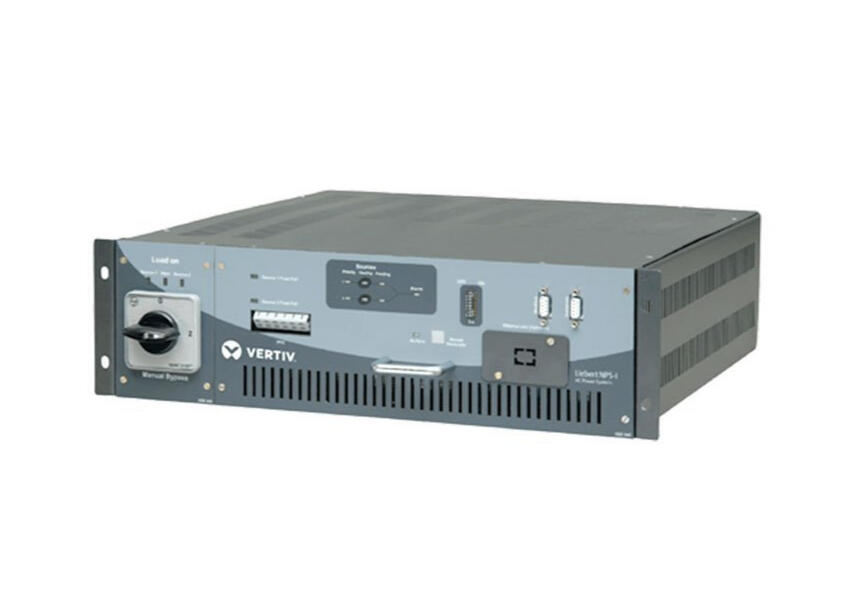

Liebert Network Power Switch I and II
Designed by data center experts for data center users, the Emerson HPL battery cabinet leverages advanced Lithium-Ion technology to provide a smaller,...

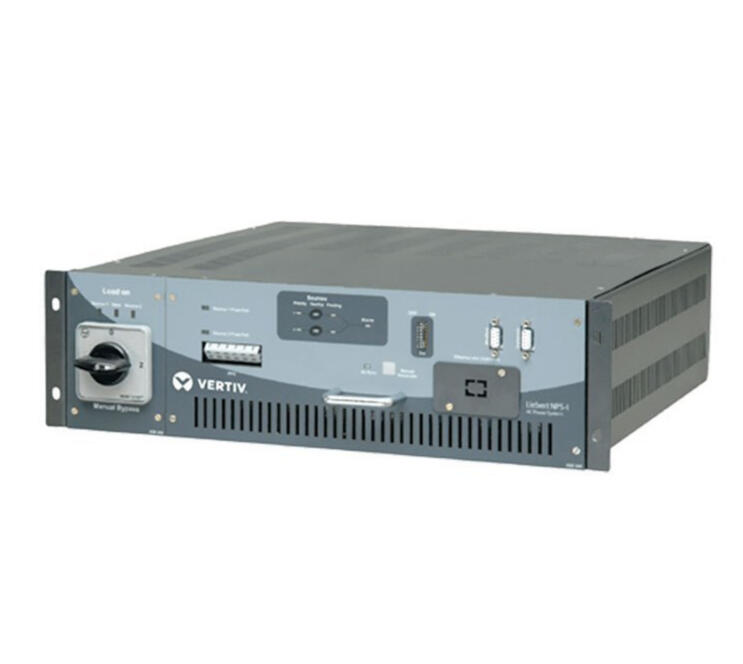

Liebert Network Power Switch
Emerson's Liebert® NPS enables fast transfer between two independent AC power sources to ensure continuous operation of mission-critical loads.

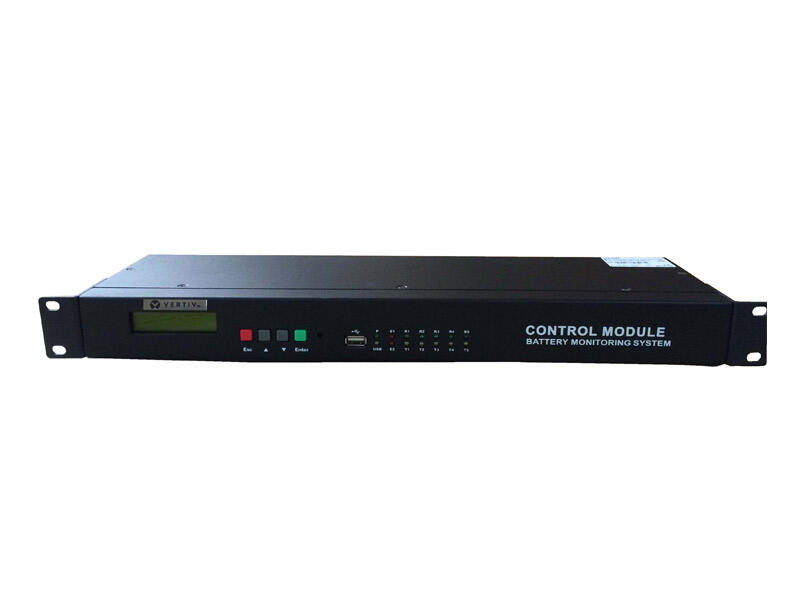

IBMU Battery Monitoring Unit
An intelligent battery monitoring unit designed to optimize battery performance and enhance overall system reliability.

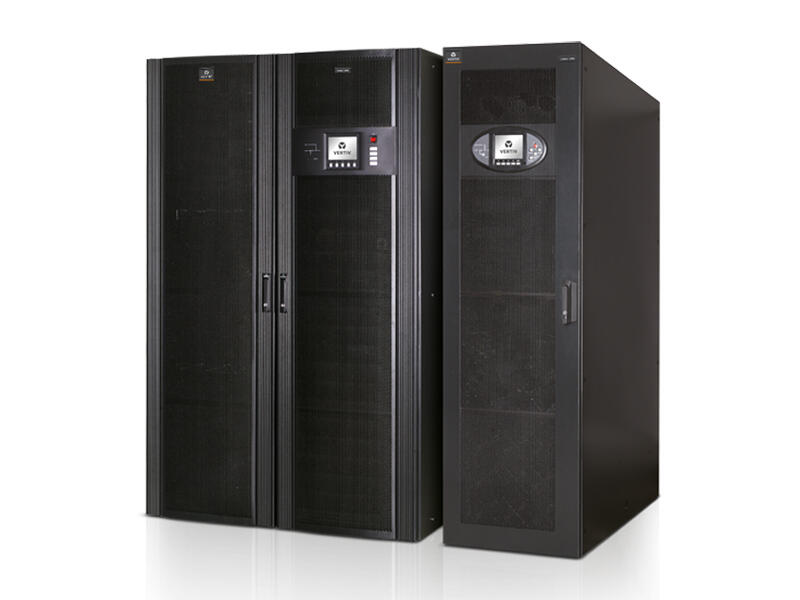

Liebert APM UPS, 30-600 kW
The Liebert APM is a versatile, modular, transformer-free UPS engineered to operate with maximum energy efficiency for critical applications.
Liebert GXT MT+ 1x1 6/10kVA
Liebert GXT MT+ 6 kVA is a fully featured, transformer-free UPS designed to deliver a compact, efficient, and reliable power solution.
Liebert GXT MT+ CX 16A
Liebert® GXT MT+ CX is a transformer-free, feature-rich UPS that provides a compact, energy-efficient, and reliable power solution for modern electronic equipment.
Liebert GXT MTX+ 6KVA
The Liebert GXT MTX+ 6 kVA is a fully featured, transformer-based UPS engineered to provide compact, efficient, and reliable power for demanding modern electronic equipment.

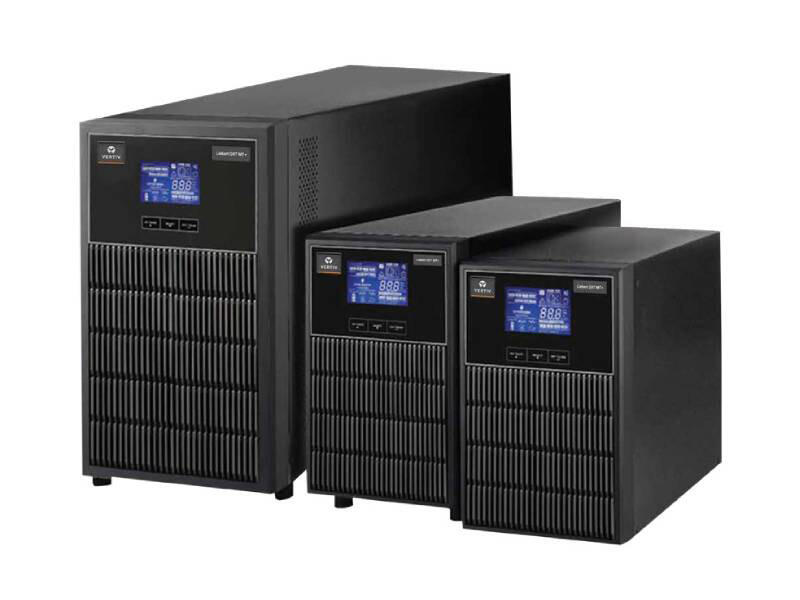

Liebert® GXT MT + CXi
Liebert® GXT MT+ CXi Series are true online double-conversion UPS systems available in 1, 2, and 3 kVA capacities, delivering complete protection for connected loads against power disturbances.

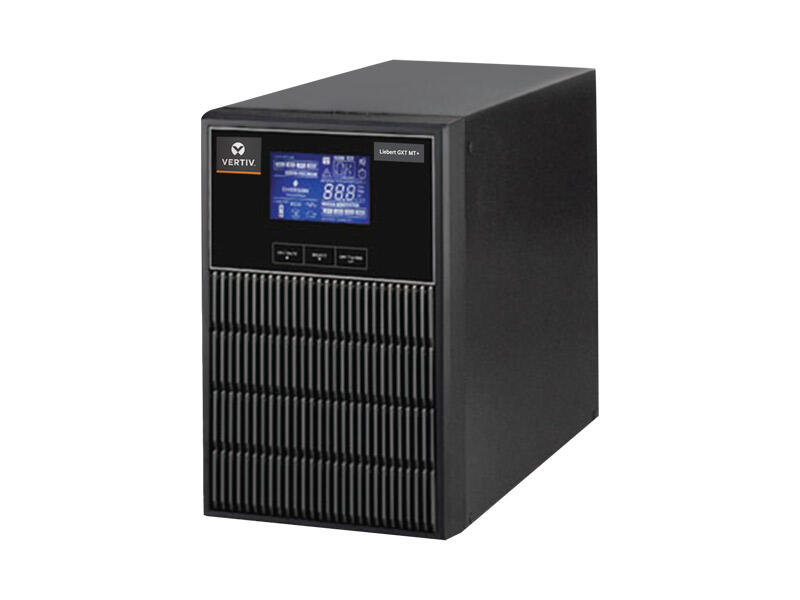

Liebert® GXT MT+ CX4 1K SB - 1 kVA
The Liebert® GXT MT+ CX4 1K SB is a true double-conversion online UPS system designed to deliver 1 kVA capacity with an inbuilt battery.

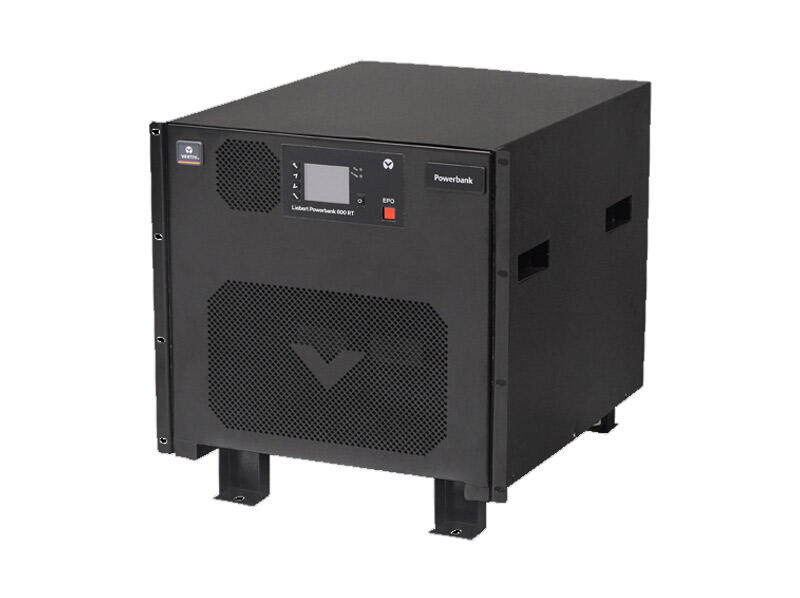

Liebert® Powerbank 600 RT 3 X 1
In today’s dynamic environment, basic power protection alone is no longer sufficient for enterprises.

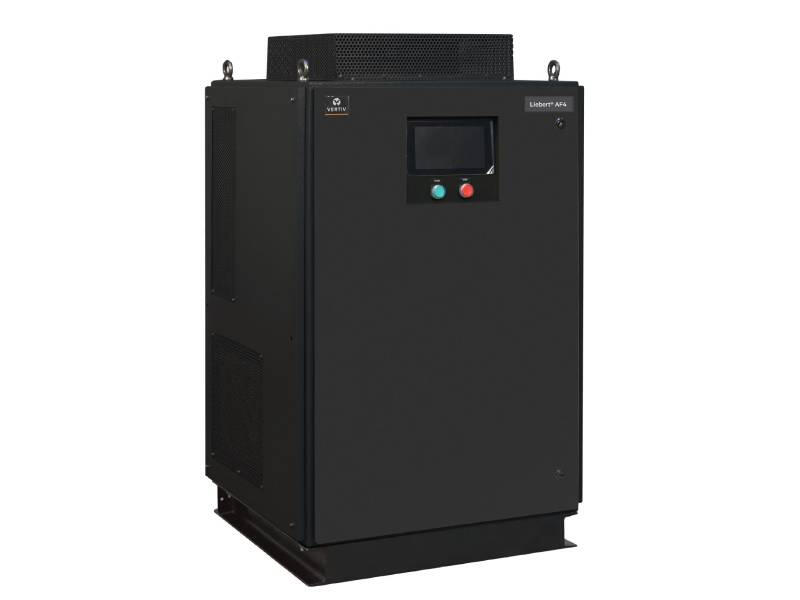

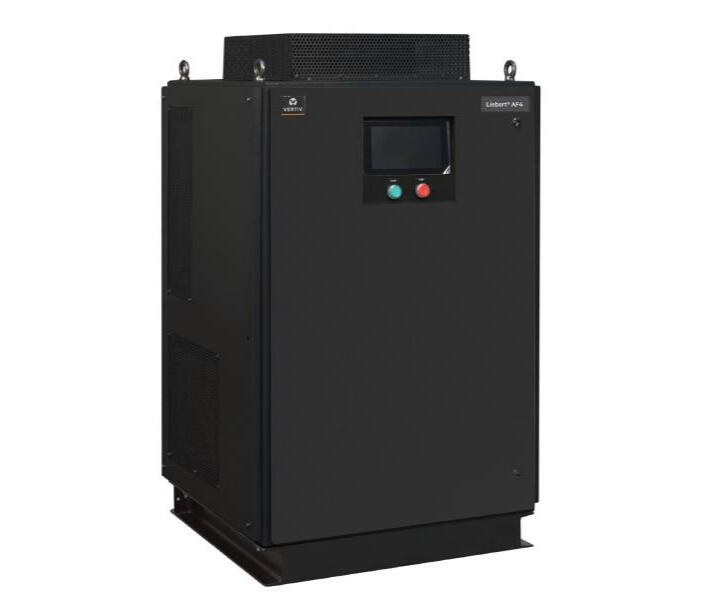

Emerson Liebert® AF4
Emerson proudly introduces its first product line, the Emerson Liebert® AF4—an Active Harmonic Filter (AHF) designed to meet today’s industrial requirements.

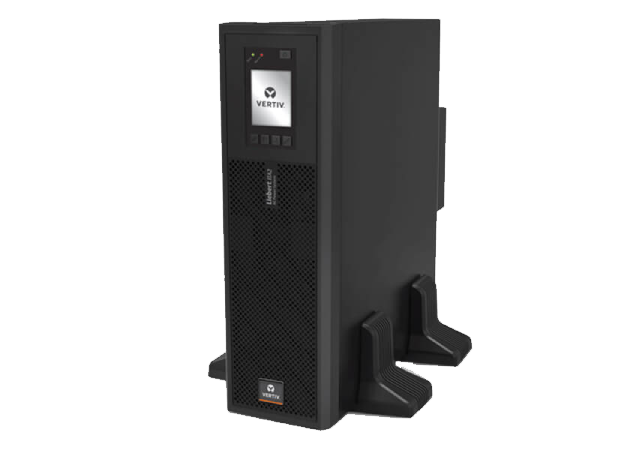

Emerson Liebert® ITA2 30 - 40 kVA
The Emerson Liebert® ITA2 UPS delivers cost-effective, efficient, and dependable three-phase power for critical loads up to 40 kVA, with flexible rack-mount or tower installation options.

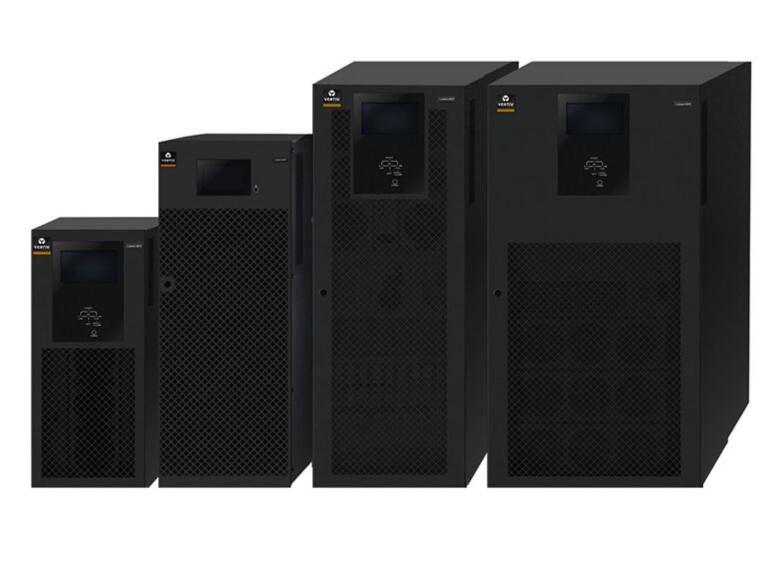

Emerson Liebert® MTP UPS
Introducing the Emerson Liebert MTP UPS—a high-performance power protection solution engineered with advanced features to meet all your critical power requirements.
Liebert® EXS™ 10-80kVA
The Liebert® EXS™ redefines power protection by delivering high-performance capability within a compact, monolithic design. By eliminating the internal transformer, the UPS achieves double-conversion efficiency of up to 96.2%.
Best Suited for:
Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Retail and Wholesale
Telecom
Benefits
Adaptable Power Delivery: Units up to 20 kVA provide on-site flexibility, enabling configuration for either three-phase or single-phase output (3/3 or 3/1) to accommodate changing site requirements.
Scalable Redundancy: The system is parallel-ready and supports up to four units. Expansion from a single unit to a parallel configuration is achieved through simple software settings, ensuring seamless scalability.
High-Density Internal Backup:
The internal design supports up to four battery strings, delivering extended autonomy within a compact footprint and often removing the need for external battery cabinets.
Flexible Battery Management: To maximize backup duration while optimizing floor space, the system supports both common and distributed battery banks and is compatible with internal as well as external battery configurations.
Galvanic Isolation Options:
An optional input or output transformer can be integrated to provide full galvanic isolation, making it suitable for medical environments and complex electrical systems without a neutral.
Rapid Recovery & Mobility: Equipped with a high-capacity charger for fast battery replenishment and integrated casters, the unit ensures both long-term power readiness and easy physical repositioning during installation.
Cost Efficiency: By maximizing internal battery capacity and offering transformer-free efficiency, the unit significantly lowers installation expenses and reduces the total physical square footage required.
Features
Full Power Utilization: Delivers a unity output power factor (1.0), ensuring maximum usable wattage is supplied to connected equipment.
Superior Efficiency: Reduces energy costs with double-conversion efficiency of up to 96.2% and ECO mode efficiency reaching 99.3%.
Space-Efficient Runtime: Maintains a compact footprint while supporting multiple internal battery configurations for flexible backup durations.
Flexible Phase Support: Offers on-site adaptability with 3/3 and 3/1 output configurations for 10–20 kVA models.
Streamlined Protection: Features a factory-integrated maintenance bypass along with built-in input and output breakers for simplified servicing and enhanced safety.
Scalable Growth: Enables parallel operation to increase overall system capacity or provide mission-critical redundancy.
Future-Ready Storage: Fully compatible with lithium-ion batteries, delivering extended service life and faster recharge capability.
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Liebert® EXS™ 10-20kVA | 10, 15, 20kVA | 380/400/415 (three-phase + N + PE) | 380/400/415 (three-phase + N + PE) or 220/230/240 | Up to 99.3% | 1300 mm | 335 mm | 650 mm | 85 kgs |
| Liebert® EXS™ 30-40kVA 30kVA, | 40 kVA | 380/400/415 (three-phase + N + PE) | 380/400/415 (three-phase + N + PE) | Up to 99.3% | 1600 mm | 440 mm | 750 mm | 200 kgs |
| Liebert® EXS™ 60kVA | 60kVA | 380/400/415 (three-phase + N + PE) | 380/400/415 (three-phase + N + PE) | Up to 99.3% | 1600 mm | 600 mm | 850 mm | 215 kgs |
| Liebert® EXS™ 80kVA | 80kVA | 380 / 400 / 415 V (three-phase + N + PE) | 380 / 400 / 415 V (three-phase + N + PE) | Up to 99 % | 1600 mm | 600 mm | 850 mm | 230 / 260 kgs |

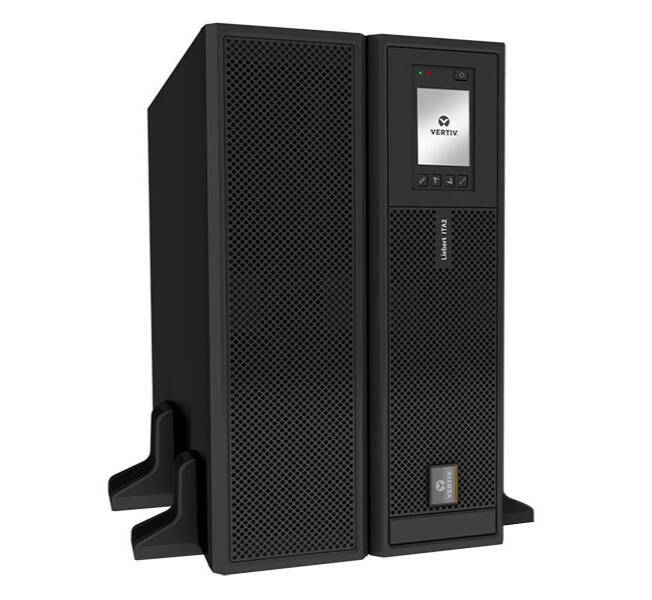

Emerson Liebert® ITA2 UPS 1-3 kVA
The Emerson Liebert® ITA2 (1–3 kVA) is a compact, high-performance, transformer-free UPS that provides space-saving, energy-efficient, and reliable power protection for sensitive digital equipment.
Warranty
Standard 2 years warranty. Available in both Standard Backup (SB) and Long Backup (LB) Variant.
Benefits
Continuous Double-Conversion Technology: Delivers true online power by continuously converting AC to DC and back to AC, ensuring zero transfer time to battery operation.
1–3 kVA Power Ratings: Available in multiple capacity options to meet a wide range of small-to-medium power protection requirements.
Auto-Rotating “Gravity Sense” Display: The LCD interface automatically adjusts its orientation based on whether the unit is installed vertically or horizontally.
Broad Input Voltage Tolerance: Designed to withstand wide input voltage fluctuations without switching to battery mode, helping extend battery life.
Active Input Power Factor Correction: Improves overall efficiency while minimizing harmonic distortion and reducing electrical noise returned to the facility power grid.
Intelligent Battery Management: Advanced charging technology optimizes battery health, extending service life and ensuring reliable discharge performance.
Generator-Ready: Fully compatible with generator power sources, making it suitable for sites with extended backup power requirements.
Versatile Connectivity Ports: Equipped with SNMP, USB, and RS-232 interfaces for comprehensive remote monitoring and local management.
High-Efficiency Eco Mode: Optional operating mode that reduces internal power consumption to lower energy usage and operating costs.
Instant Emergency Power Off (EPO):
Includes a dedicated EPO terminal to enable immediate system shutdown during fire or safety emergencies.
Flexible Rack/Tower Form Factor:
Supports both tower installation and standard rack mounting for deployment flexibility.
Hardened Industrial Build: A dust-resistant chassis capable of maintaining full performance even in harsh environments up to 50°C (122°F).
Built-in Output Receptacles: Comes with integrated sockets for direct and easy equipment plug-in.Unity Output Power Factor ($PF = 1.0$): Delivers more real power (Watts) by ensuring the kVA rating equals the Wattage rating.
Documents & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Emerson Liebert® ITA2 1 kVA | 1 kVA | 176 Vac to 288 Vac at full load | 220 Vac/230 | 92% | 85 mm | 430 mm | 400 mm | 15.6 Kg |
| Emerson Liebert® ITA2 2 kVA | 2 kVA | 100 Vac to 176 Vac linear increasing | Vac/240 Vac | 93% | 85 mm | 430 mm | 470 mm | 19.9 Kg |
| Emerson Liebert® ITA2 3 kVA | 3 kVA | 100 Vac at half load | 220 Vac by default | 94% | 85 mm | 430 mm | 540 mm | 26.7 Kg |

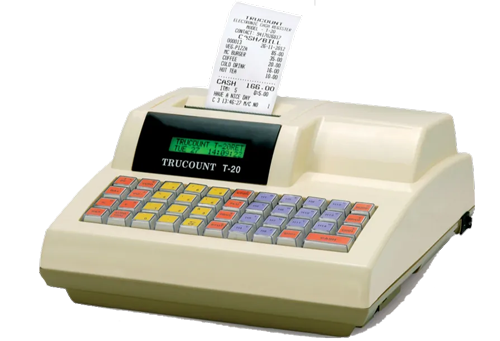

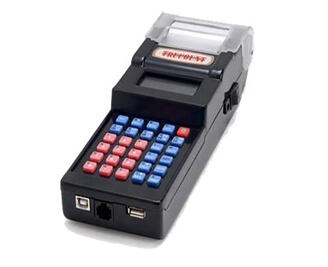

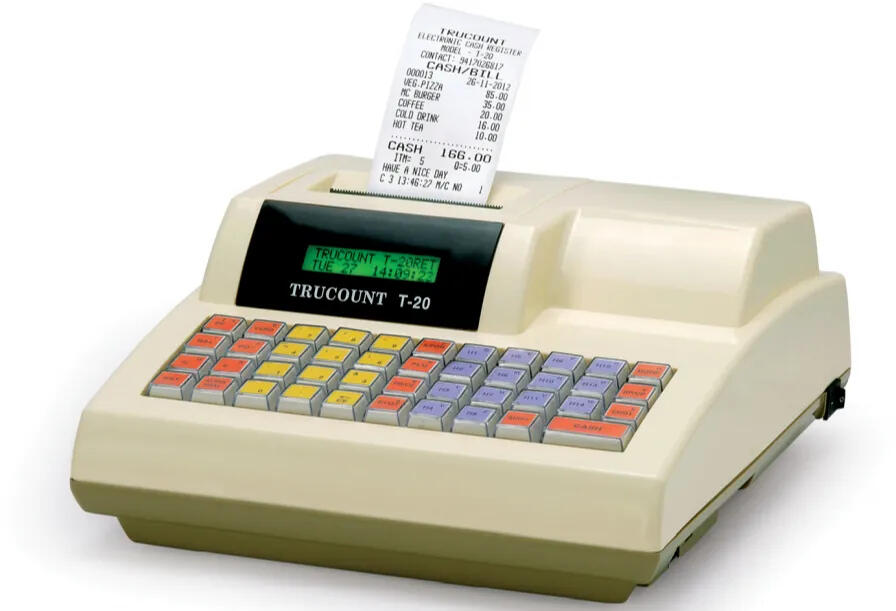

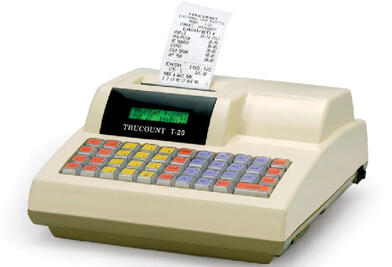

Click above to view TRUCOUNT T 20 manual

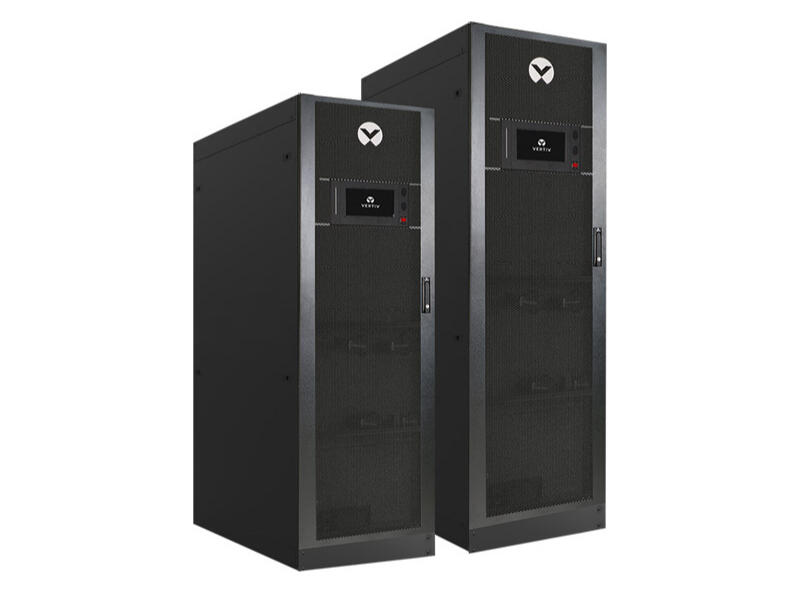

Liebert EXM2
The Emerson Liebert® EXM2 is a high-performance, single-frame UPS engineered to meet the increasing demand for superior reliability and energy efficiency in modern, mid-tier mission-critical environments.
Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Education
Healthcare
Government
Manufacturing
Retail and Wholesale
Professional Services
Telecom
Transportation
Benefits
High Energy Efficiency: Lowers power consumption and reduces total cost of ownership.
Advanced Energy Saving: Further enhances overall power efficiency.
Optimized Part-Load Performance: Maximizes efficiency even at reduced loads.
Compact Design: Saves up to 15% floor space compared to legacy systems.
Operational Flexibility: Adapts easily to a wide range of applications.
Fast Battery Recharge: Shortens recovery time to maintain backup readiness.
Flexible Battery Support: Compatible with multiple battery types, reducing installation costs.
Multiple Configuration Options: Available in a wide range of models for tailored deployments.
Thermal Robustness: Operates efficiently across environments while lowering cooling costs.
Universal Load Compatibility: Supports both IT and non-IT critical loads.
High Scalability: Scales up to 1.5 MW for large power requirements.
Simplified Maintenance: User-friendly interface with reduced spare-parts complexity.
Features
High-Efficiency Dual Modes: Achieves up to 97% in double-conversion and 99.2% in ECO mode.
Dynamic Online Performance: A third operating mode reaching up to 98.8% efficiency.
Smart Parallel Technology: Includes an intelligent paralleling function for optimized load sharing.
Minimal Footprint: Engineered to consume the least amount of floor space possible.
Flexible Deployment: Fits various layouts, including In-Row, Room, or Wall-adjacent setups.
High-Capacity Charging: Outfitted with a heavy-duty charger for rapid battery recovery.
Streamlined DC Wiring: Compatible with 2-wire DC bus configurations.
Li-ion Ready: Fully supports modern lithium-ion battery integration.
Extreme Thermal Range: Operates reliably in ambient temperatures reaching 50°C.
Full Power Delivery: Handles 0.5 lagging to 0.5 leading loads with zero capacity loss.
High Scalability: Expandable to a maximum of 6 units in a single system.
Unified Interface: Features a user-friendly touchscreen HMI consistent with other Emerson products.
Documents & Downloads
Model Specifications Overview
| Models | Input Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|
| Liebert EXM2 100 kVA | 380 / 400 / 415 | 1600 mm | 600 mm | 850 mm | 315 kgs |
| Liebert EXM2 120 kVA | 380 / 400 / 415 | 1600 mm | 600 mm | 850 mm | 350 kgs |
| Liebert EXM2 160 kVA | 380 / 400 / 415 | 1600 mm | 600 mm | 850 mm | 350 kgs |
| Liebert EXM2 200 kVA | 380 / 400 / 415 | 2000 mm | 600 mm | 850 mm | 412 kgs |
| Liebert EXM2, 250 kVA | 380 / 400 / 415 | 2000 mm | 600 mm | 850 mm | 447 kgs |

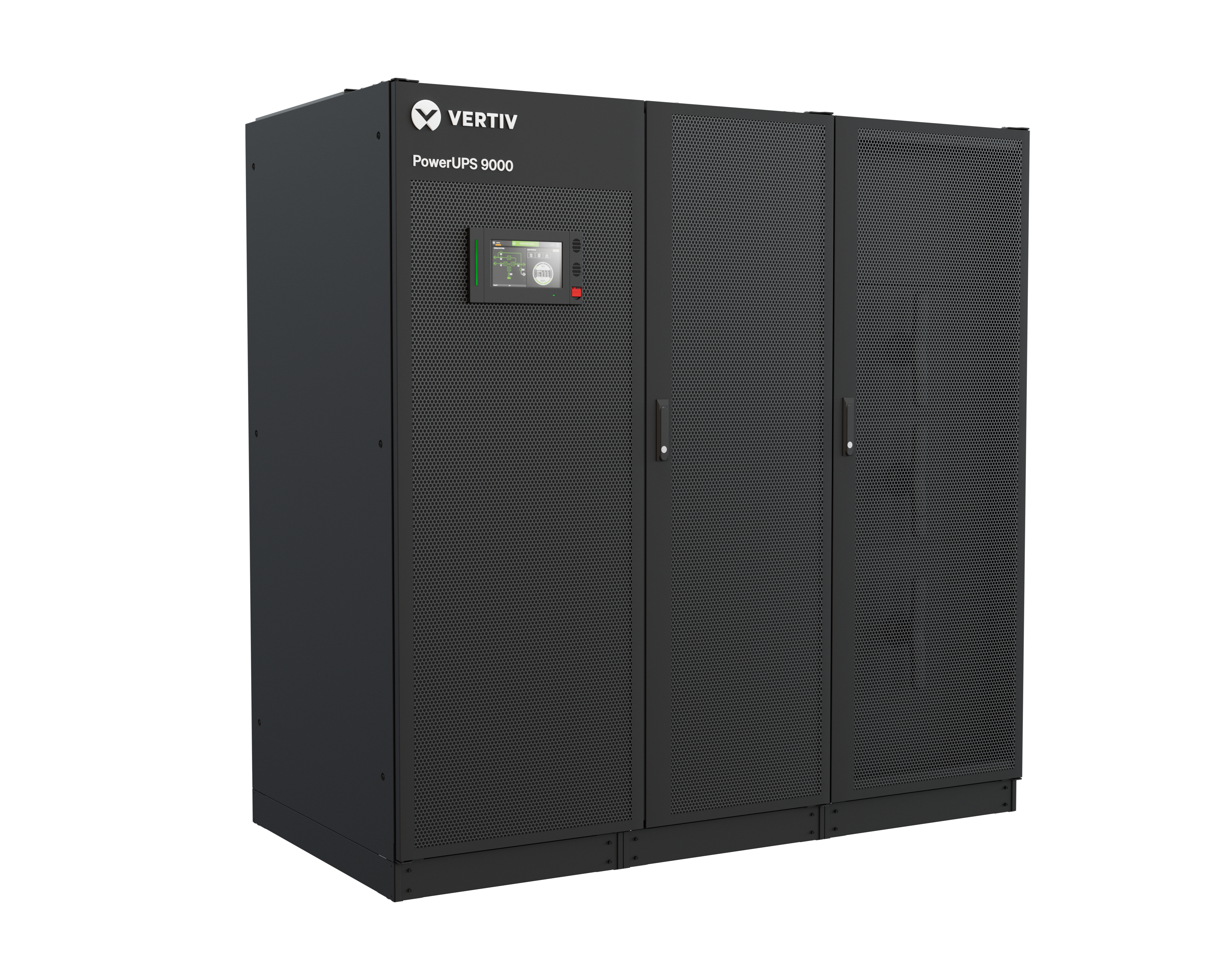

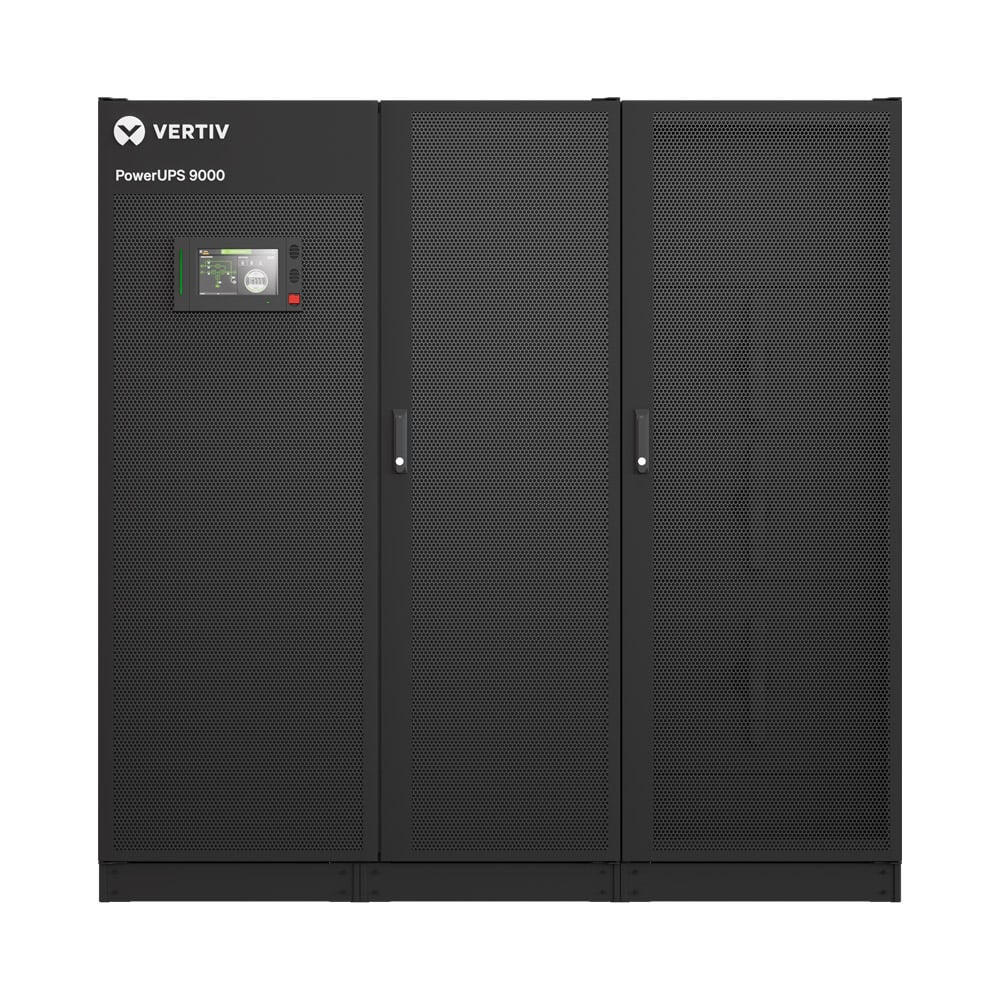

Emerson Power UPS 9000
The Emerson PowerUPS 9000 is a compact, high-efficiency power protection system engineered for maximum power density. Designed to support a broad range of IT applications—from standard server environments to high-density computing—it delivers reliable performance even where floor space is limited. Available globally in UL and CE certified configurations, the system covers capacities from 250 to 1250 kVA/kW. As Emerson’s most energy-efficient UPS in its class, it features a footprint up to 32% smaller than previous models and achieves double-conversion efficiency of up to 97.5%. The PowerUPS 9000 supports multiple energy storage technologies, including Emerson EnergyCore lithium, VRLA, and Nickel-Zinc batteries, while its modular 125 kVA building blocks enable seamless scalability as power requirements grow.
Banking
Financial and Insurance
Data Center/Colocation/Hosting
Education
Government
Healthcare
Manufacturing
Telecom
Features
Wide Input Voltage Range: Reduces battery usage and extends battery life.
High Power Factor: Maximizes usable kW output for efficient power utilization.
Hot-Swappable Modules: Enable maintenance and capacity expansion with zero downtime.
Robust & Reliable Design: Segregated controls, advanced diagnostics, and rigorous validation ensure dependable operation.
High Operational Efficiency: Lowers total cost of ownership while improving overall PUE.
END-TO-END SERVICE SUPPORT: Backed by comprehensive service packages that provide expert support across the entire UPS lifecycle for peak performance.
Benefits
Uninterrupted Operation: Hot, tool-free servicing enables maintenance or expansion without downtime.
125 kVA Modular Power: Scalable modules allow easy alignment with project phases and actual load demands.
Advanced Digital Intelligence: Data-driven insights across the system lifecycle, with optional Emerson Life™ monitoring.
Flexible Energy Compatibility: Supports multiple backup technologies, including lithium-ion and nickel-zinc batteries.
Documents & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Wiring | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Emerson PowerUPS 9000 480V | 1250kW | 480Vac | 480Vac | 97.6% | 3Ph + PE | 1998.9 mm | 2098.04 mm | 998.2 mm | 4321 kgs |
| Emerson PowerUPS 9000 400V | 1250kW | 380/400/415Vac | 380/400/415Vac | Up to 97.5% | 3Ph + N + PE | 2000 mm | 2000mm | 1000 mm | 2010 kgs |
| Emerson PowerUPS 9000 625kW 625kW | 380/400/415Vac | 380/400/415Vac | up to 97.5% | 3Ph + N + PE | 2000 mm | 800 mm | 1000 mm | 751 kg |
Emerson Liebert® APM2 30-600kW
Introducing Emerson Liebert® APM2, a next-generation, modular, transformer-free UPS designed for mission-critical applications. This high-power-density, feature-rich solution incorporates advanced three-level IGBT architecture with Silicon Carbide converter technology to deliver exceptional double-conversion efficiency of up to 97.5%, reducing operating costs, total cost of ownership (TCO), and environmental impact.
Data Center/Colocation/Hosting
Education
Fire/Alarm/Security
Government
Healthcare
Manufacturing
Telecom
Transportation
Documents & Downloads
Features
Reliable operation up to 50 °C with automatic derating above 40 °C
Large 9-inch full-color touchscreen HMI for easy operation
Smart paralleling capability for system expansion
Optimized MTTR of less than 0.5 hours for faster service recovery
Advanced battery management with flexible battery block options (30–50*)
Predictive maintenance alerts and notifications
Real-time waveform monitoring via GHMI with fault-time capture
Built-in self-capacity testing functionality
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Liebert® APM2 30-120 kW | 30-120 kW | 380/400/415 V (3-phase 4-wire + N + PE) | 380/400/415 V (three-phase + N + PE) | up 97% in double conversion mode; >99% eco-mode | 1600 mm | 600 mm | 800 mm | 380 kg |
| Liebert® APM2 60-600kW | 60-600 kW | 380/400/415 V (3-phase 4-wire + N + PE) | 380/400/415 V (three-phase + N + PE) | up 97% in double conversion mode; >99% eco-mode | 2000 mm | 600 mm | 800 mm | 380 kg |

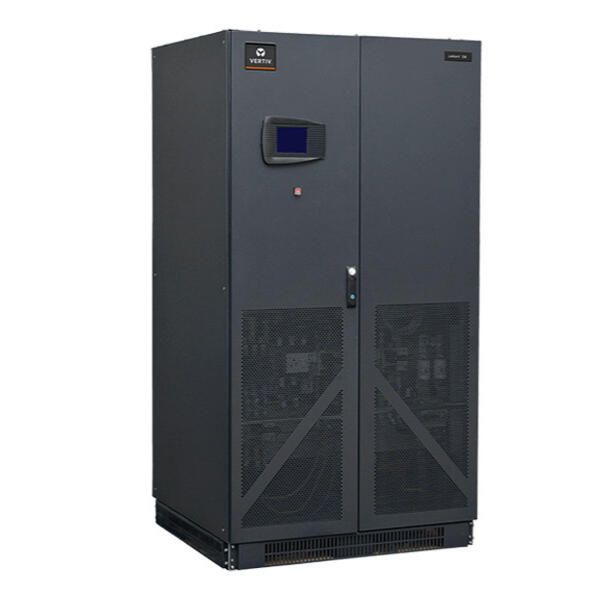

Emerson Liebert® EXL S1 UPS 300-1200kW
The Emerson Liebert® EXL S1 UPS delivers reliable power with superior load protection and exceptional energy efficiency for large-scale, AI-driven applications. Its Dynamic Grid Support capability enables frequency regulation by intelligently controlling input power through battery charging and discharging. In Dynamic Online mode, the system achieves efficiency levels of up to 99% while maintaining full availability.
Key Benefits
DYNAMIC GRID SUPPORT: Enables rapid response to grid service commands, reacting within just 0.5 seconds.
HIGH-DENSITY POWER PROTECTION: Delivers dependable power to AI workloads across multiple operating conditions, including utility supply, generator mode, and system transitions.
COMPACT, SPACE-EFFICIENT DESIGN: High energy density combined with a small footprint ensures optimal use of available space.
SIMPLIFIED INSTALLATION & MAINTENANCE: Top and front access to critical components allows servicing without switching to bypass mode or shutting down the power.
SAFE CAPACITY MODE: Emerson Liebert® EXL S1 enables UPS load and battery discharge testing without the need for an external load bank.
Benefits
Compact footprint that frees up valuable space for revenue-generating IT infrastructure
Reliable power protection with high efficiency, superior power quality, and continuous availability
Parallel scalability supporting up to eight units in both distributed and centralized configurations
Flexible installation compatible with VRLA and lithium-ion battery technologies
Proactive remote support with diagnostics and preventive monitoring for optimal UPS performance
Features
Ultra-compact design with the smallest footprint in its kVA class compared to competing solutions
Three high-efficiency operating modes: Double Conversion (97%), Dynamic Online (99%), and ECO Mode (>99%)
Advanced touchscreen interface allowing users to customize system data, settings, and display views
Compliant with 2014 NEC requirements, featuring high-impedance DC ground fault detection
Supports versatile system configurations with dual asynchronous sources and dual-input capability

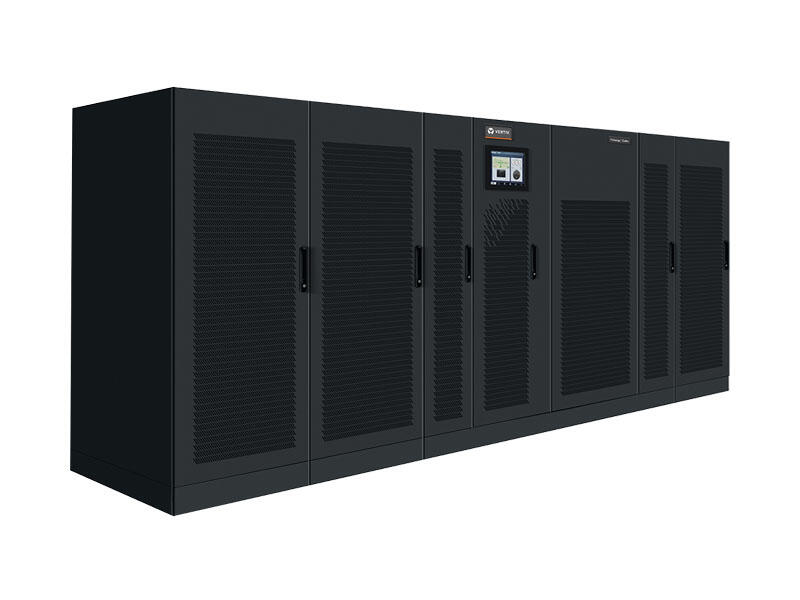

Emerson Liebert® Trinergy Cube UPS, 150 kW-3.4 MW
Liebert® Trinergy™ Cube is the next generation of Emerson Liebert® Trinergy™ UPS solutions, delivering exceptional performance for enterprise data centers. Designed to scale with business growth, it ensures maximum power availability while reducing total cost of ownership, energy consumption, and CO₂ emissions.
Banking
Financial and Insurance
Data Center/Colocation/Hosting Telecom
Healthcare
Manufacturing
Benefits
IMPROVED UPTIME
• Continuous 24/7 remote diagnostics and monitoring
• Peak shifting capability to optimize energy usageFLEXIBLE DEPLOYMENT
• Adapts easily to physical space limitations
• Suitable for all locations, including new builds and existing facilities worldwide
• Frees up additional space for IT equipmentADAPTIVE POWER RATING
• Dynamically adjusts power output based on load and site environmental conditionsOPTIMIZED TOTAL COST OF OWNERSHIP
• Delivers significant savings in electrical infrastructure and floor space
• ETL-listed products are eligible for 100% first-year capital allowance claims
Features
EFFICIENCY
• Utilizes advanced three-level NPC2 topology for both rectifier and inverter stagesHIGH AVAILABILITY
• Predictive maintenance capabilities
• Advanced event analysis, waveform capture, and harmonic spectrum analysis
• Comprehensive data logging
• Embedded Emerson LIFE™ Services for remote diagnostics and preventive monitoringCAPACITY & INSTALLATION FLEXIBILITY
• Configurable across multiple system layouts
• Simplified cable management with unlimited input and output power connection options
• Higher energy density for optimized space usage
• Single-unit capacity scaling up to 3.4 MWSMART CAPACITY MANAGEMENT
• I/O boxes and cores designed for continuous operation up to 55°C, with enhanced performance down to 20°C
• Adjustable maximum UPS input current to align with specific protection rating requirements
• Built-in safe capacity testing functionality
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Trinergy Cube 400 kW Core | 400 kVA / 400 kW | 380 / 400 / 415 VAC | 380 / 400 / 415 VAC | up to 99% (Dynamic Online) 3ph + N + PE , 3ph + PE | 1956 mm | 680 mm | 916 mm | 590 kg |
Emerson Liebert® APM Plus
Introducing the latest Liebert® APM Plus, a scalable, high-power-density, transformer-free UPS designed to deliver double-conversion efficiency of up to 97% along with strong performance at a highly competitive operating cost. This modular UPS provides exceptional flexibility through its ultra-compact design, making it ideal for both row- and room-based installations while offering the smallest footprint in its class. Liebert® APM Plus helps future-proof mission-critical environments such as data centers, telecom IDCs, and similar facilities by ensuring reliable protection against power disruptions. The Liebert® APM Plus UPS is available in capacities ranging from 50 to 500 kW.
Banking
Financial and Insurance
Data Center/Colocation/Hosting
Telecom
Retail and Wholesale
Professional Services
Data Center/Colocation/Hosting
Benefits
Improves energy efficiency while lowering total cost of ownership
Uses up to 50% less space than legacy systems
Enables faster battery recharge times
Supports a wider range of battery options with reduced installation costs
Delivers greater flexibility through an expanded solution portfolio
Enhances adaptability while lowering cooling needs and associated costs
Fully supports modern, mission-critical IT workloads
Scales up to a maximum capacity of 2 MW
Reduces MTTR while maximizing system availability
Simplifies operation and streamlines spare-parts management
Features
Delivers up to 97% double-conversion efficiency and over 99% efficiency in ECO mode
Maintains a flat efficiency curve across varying load levels
High power density design suitable for row-based and room-level installations
Modular, scalable architecture with hot-swappable power and bypass modules
Distributed module control architecture for improved resilience
Unity output power factor with a balanced, symmetrical profile
Enhanced reliability through optimized airflow design and conformal-coated PCBs
Built-in parallel operation and load bus synchronization
Advanced intelligent paralleling capability
Intuitive 9-inch touchscreen LCD interface
Supports UPS self-capacity testing without the need for external load banks
Operates reliably in ambient temperatures up to 50 °C with automatic derating
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Liebert® APM Plus 50-250kVA | 50-250kW | 380 / 400 / 415 | 380 / 400 / 415 | up 97% in double conversion mode;>99% eco-mode | 2000 mm | 600 mm | 850 mm | 447 kg |
| Liebert® APM Plus 50-500kVA | 50-500kW | 380 / 400 / 415 | 380 / 400 / 415 | up to 97% in double conversion mode; >99% eco-mode | 2000 mm | 600 mm | 1000 mm | 600 - 608 kg |
Liebert S600D 3x1 10/20kVA
The Liebert® S600 is a fully digital, high-reliability double-conversion UPS that delivers clean, consistent, and stable power protection. Engineered for high efficiency, it supports a broad range of applications such as IT racks, network closets, automation and control systems, precision instruments, and small control rooms. Its versatility and dependable performance make it an ideal solution for edge and distributed environments where space, efficiency, and reliability are critical.
Document & Downloads
Features

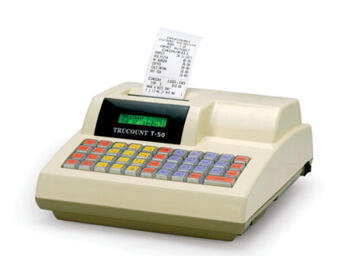

Keyboard: 43-key alphanumeric
Printing Speed: 40–60 mm/sec
PC Connectivity: Serial and USB interfaces
Serial Port: RJ45
Item Sales Reports: Daily and monthly
Tax Summary Reports: Daily and monthly
Cash Drawer Support
Model Specifications Overview
| Models | Power Rating | Input Voltage Range | Output Voltage Range | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| 10KVA | 10kVA (3in - 1out) | 176 -288VAC at 100% load; 100VAC - 288VAC at 50% l | 220/230/240VAC (single phase) | 700 mm | 550 mm | 620 mm | 138 kgs |
| 20KVA | 20kVA (3in - 1out) | 176 -288VAC at 100% load; 100VAC - 288VAC at 50% l | 220/230/240VAC (single phase) | 700 mm | 550 mm | 620 mm | 158 kgs |

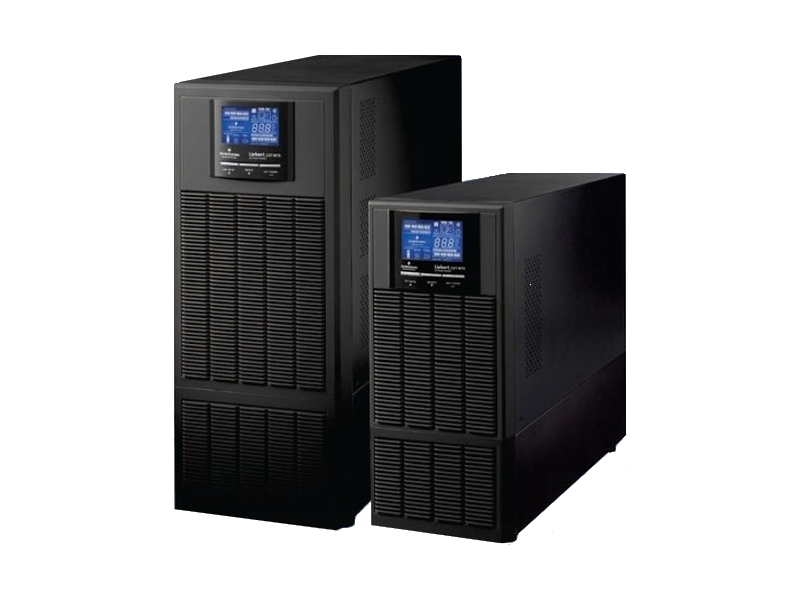

Liebert® GXTMT+ LX (3 X 3) 10KVA
Essential and Affordable UPS for High Performance Power Protection
Warranty: 2 years warranty
Features
IGBT Based Rectifier
Digital Signal Processors (DSP) Control Technology for High Performance and Reliability.
Equipped with intuitive and broad LCD Display.
Double Conversion Efficiency up to 92%
Active Input Power Factor (PF) Correction 0.99.
0.9 Output Power Factor
Wide Input Voltage window
(110 Vac to 280 Vac) for Indian Environmental Condition.
Configurable Output Voltage (208 Vac/220 Vac/230 Vac/240 Vac)
Generator Compatible with Wide Input Frequency Range (40 Hz to 70 Hz)
4 Stage, Extendable Charging Design for optimized Battery Performance.
Adjustable Battery Charging Current 1 A/2 A/4 A/6 A according to Battery Capacity and Rating.
50 Hz/60 Hz Automatic Frequency Converter Mode.
Inbuilt Over Voltage Cut-Off device (OVCD) feature
Document & Downloads
Model Specifications Overview
| Models | Height | Width | Depth | Weight |
|---|---|---|---|---|
| Emerson Liebert® GXT MT+ EX 2 kVA | 220 mm | 145 mm | 397 mm | 17 kg | 6.8 kg |
| Emerson Liebert® GXT MT+ EX 1 kVA | 220 mm | 145 mm | 282 mm | 9.8 kg | 4.1 kg |
| Emerson Liebert® GXT MT+ EX 3 kVA | 318 mm | 220 mm | 190 mm | 145 mm | 421 mm | 397 mm | 27.6 kg | 7.4 kg |

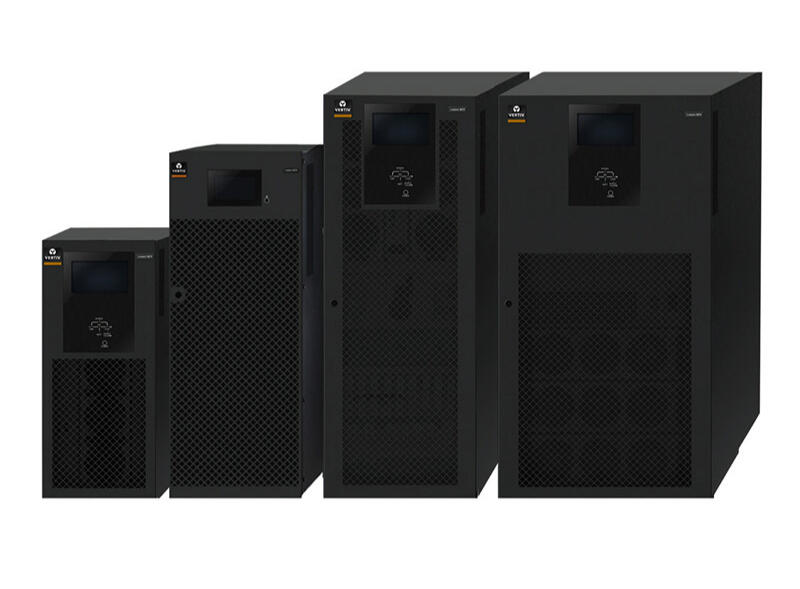

Liebert ITA2 UPS
In today’s fast-evolving digital landscape, basic power protection is no longer sufficient for enterprises. As emerging technologies continue to reshape the way businesses operate, ensuring uninterrupted business continuity has become critical. Any downtime in mission-critical systems—or delays in restoring them after a disruption—can result in significant operational and financial impact. What enterprises require is a robust, high-speed, and highly reliable UPS solution that delivers continuous, round-the-clock power protection, supporting a wide range of applications with confidence and resilience.
Features
Reinforced chassis with an advanced internal airflow system for improved cooling and long-term durability
Wide input voltage tolerance to ensure stable performance during grid fluctuations
Intelligent load management with programmable outlets and sequential protection for critical equipment
Built-in Ethernet connectivity with HTTP support for easy remote monitoring and management
Designed for simple installation and hassle-free maintenance
Certified for seismic resistance and reliable operation in high-vibration mobile environments
Auto-rotating LCD that adjusts orientation for clear viewing from any angle
Fully dust-sealed enclosure enabling continuous operation in ambient temperatures up to 50 °C
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| ITA-05k00AL1102P00/ITA-05k00AE1102P00 | 220/230/240VAC | 176-288VAC at full load;100-176VAC at linear dera | 220/230/240VAC (1-Phase) | 85 mm | 430 mm | 450 mm | 11 kgs |
| ITA-05k00AE1102P00 / ITA-10k00AEA102P00 | 220/230/240VAC | 176-288VAC at full load;100-176VAC at linear dera | 220/230/240VAC (1-Phase) | 85 mm | 430 mm | 450 mm | 11 kgs |
| ITA-06k00AL1102P00/ ITA-16k00AL3A02P00 | 220/230/240VAC 1-Phase, 2Wire | 380/400/415VAC 3-P | 176-288VAC at full load; | 100-176VAC at linear dera | 85 mm | 430 mm | 560 mm | 15 kgs |
| ITA-06k00AE1102P00 / ITA-16k00AE3A02P00 | 380/400/415VAC 3-Phase, 4Wire 176-288VAC at full load; | 100-176VAC at linear dera 220/230/240VAC (1-Phase), | 380/400/415VAC (3-Phase) | 130 mm | 430 mm | 570 mm | 23 kgs |
| ITA-10k00ALA102P00/ ITA-20k00AL3A02P00 | 380/400/415VAC 3-Phase, 4Wire 176-288VAC at full load; | 100-176VAC at linear dera | 220/230/240VAC (1-Phase), 380/400/415VAC (3-Phase) | 130 mm | 430 mm | 570 mm | 23 kgs |
Liebert® GXTMT+ LX (3 X 3) 10KVA
The Liebert® GXT MT+ LX (3x3) sets a new benchmark for compact, highly reliable power protection. Combining industry-leading efficiency with a robust design, it ensures uninterrupted operation for critical infrastructure. Engineered to manage demanding power conditions, it delivers high performance and dependable operation with complete confidence.
Features
True online double-conversion design ensures continuous, clean power protection
Advanced DSP control technology delivers high efficiency and reliable performance
High power density supported by a 0.9 output power factor
Active power factor correction on all input phases for improved grid compatibility
Supports both 50 Hz and 60 Hz operation with dedicated frequency conversion
ECO operating mode reduces energy consumption and operating costs
Built-in Emergency Power-Off interface enables fast and safe shutdown
Parallel configuration support allows scalability up to 40 kVA
Industrial-grade wheels enable easy movement and positioning
Fully compatible with generator-based power sources
Multiple communication options including SNMP, USB, and RS-232 for remote monitoring
Intelligent three-stage modular charging enhances battery life and reliability
Flexible Runtime: Configurable battery strings for extended backup requirements.
Service Continuity: Built-in Maintenance Bypass Breaker for uninterrupted power during repairs.
Document & Downloads

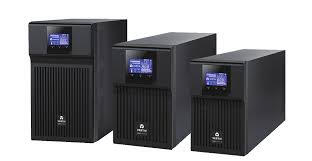

liebert-gxe-6000va-ups
The Emerson Liebert® GXE is a cost-effective, high-efficiency single-phase online double-conversion UPS that delivers robust power protection without compromise. Featuring a unity output power factor (1.0), it supplies more real power to connected loads, enabling higher equipment density. Its flexible rack/tower convertible design makes it easy to deploy in diverse environments, ensuring reliable protection for critical IT systems against a wide range of utility power disturbances.
Benefits
Comprehensive Connectivity: Offers a diverse suite of remote management and monitoring interfaces.
Streamlined Growth: Engineered for intuitive management and seamless, rapid capacity expansion.
Energy-Optimized Design: Fine-tuned to minimize power waste and reduce operational overhead.
Features
Intuitive Interface: Full-color graphical LCD that automatically re-orients based on gravity.
Premium Efficiency: Achieves up to 94% efficiency in double-conversion mode and up to 98% in ECO mode.
Adaptive Form Factor: Versatile rack/tower convertible chassis for any installation environment.
Extends backup time by supporting up to four external battery cabinets.
Allows battery replacement without shutdown through hot-swappable internal batteries.
Recharges quickly, reaching up to 90% capacity in around three hours.
Enables advanced remote monitoring via Emerson Intellislot IS-UNITY cards and Power Insight software.
Installs easily with the included adjustable 4-post rack mounting kit.
Maintains full performance across a wide 40–70 Hz input frequency range.
Ensures continuous power with an automatic internal bypass during faults or maintenance.
Document & Downloads

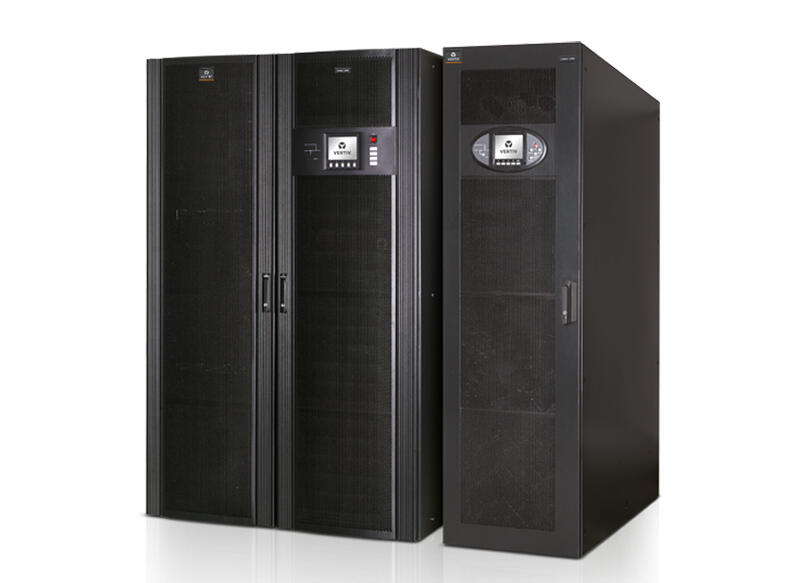

Liebert APM 30kW - 300kW
The Liebert® APM is a high-power-density UPS designed to protect small to mid-sized computer rooms while delivering exceptional energy efficiency in a compact footprint. Powered by FlexPower Technology™, it combines distributed intelligence with scalable power modules in a single integrated system. Built for fast-growing organizations, its modular design enables deployment from 30 kW and smooth expansion up to 600 kW, allowing the power infrastructure to grow seamlessly with business demands.
Benefits
Lowest cost of ownership
Enhanced operational flexibility
"All the Power You Need, Just the Power You Need"
Higher system availability
Features
Intuitive Interface: Full-color graphical LCD that automatically re-orients based on gravity.
Delivers up to 96% efficiency in true online double-conversion operation.
Uses FlexPower Technology to build a fully redundant system precisely sized to the protected load, with capacity added easily without increasing the footprint.
Supports parallel operation up to 600 kW, eliminating the need for a centralized bypass cabinet or external control modules (in selected configurations).
Compact power modules allow internal batteries to be housed within the same rack, providing up to 30 minutes of backup at 30 kW and up to 5 minutes at 90 kW.
Offers multiple combinations of internal and external batteries to suit different application needs.
Supports flexible battery configurations with 30 to 40 battery blocks per string.
Documents & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|---|
| Liebert APM 30kW - 150kW | 30-150kVA | 380/400/415Vac, 3-phase and 4 -wire | 380/400/415Vac, 3-phase and 4 -wire | 96% (On line mode), Up to 98% (Eco mode) | 2000 mm | 600 mm | 1100 mm | 263 kg |
| Liebert APM 30kW - 300kW | 30-300kVA | 380/400/415Vac, 3-phase and 4 -wire | 380/400/415Vac, 3-phase and 4 -wire | 96% (On line mode), Up to 98% (Eco mode) | 2000 mm | 1200 mm | 1100 mm | 704 kg |

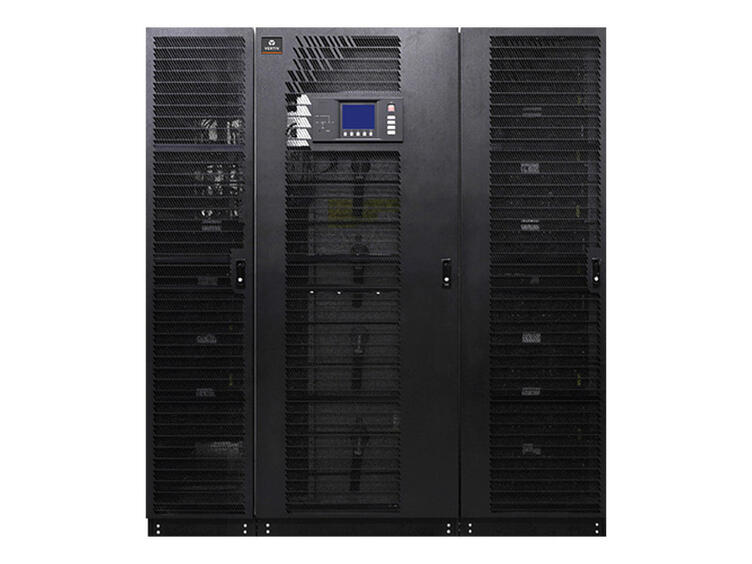

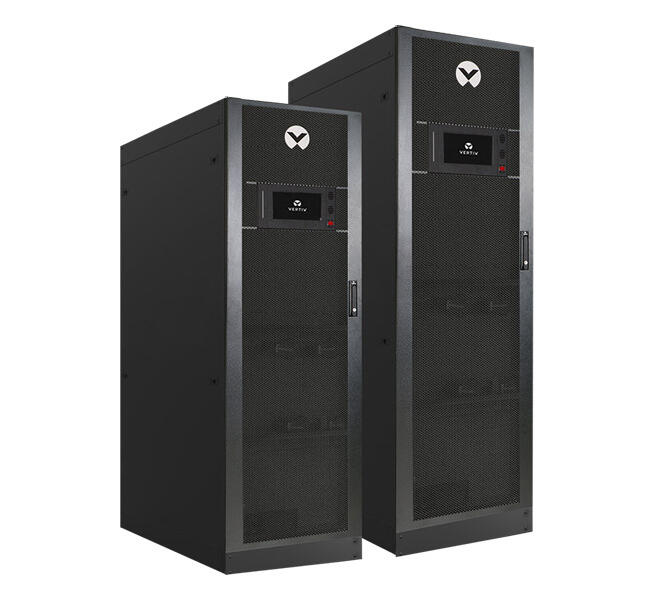

Liebert APM 400kW - 600kW
The Liebert APM UPS series is a transformer-free, on-line intuitive system that offers peak, top-notch availability and enables you to quickly increase the capacity without powering down or compromising on the connected equipment; all in a minimal footprint.
Document & Downloads
Benefits
Ultra-high availability
Energy Efficient and Superior Performance
24/7 Remote Diagnostic Service (Optional)
Flex Power Technology
Energy Efficient and Superior Performance
Features
Hot Swappable Power Modules (50kW) Assembly
Monitoring Interface Ports
Input, Output, Bypass & M. Bypass Switch Assembly
Hot Swappable Static Bypass Module Assembly
Hot Swappable Power Modules (50kW)
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| Liebert APM 400-600 kVA | 400-600 kW | 380/400/415 (three-phase and sharing neutral with | 380/400/415 | 2000 mm | 1800 mm | 1000 mm | 928 kg - 1100kg |
Liebert HIPULSE-U 30kVA - 500kVA
The Liebert Hipulse-UTM offers a reliable, scalable and user-friendly solution to ensure availability of various critical applications. The Liebert Hipulse-UTM offers protection to your investment, and provide lower cost of ownership through its digital architecture and range of options which you can customize specifically for your needs.
Features
Adjustable static bypass frequency synchronization range up to ±6%.
Supports field communication protocols including Modbus and JBus.
Enables network-based monitoring and management through SNMP.
Handles overload conditions of 110% for 60 minutes, 125% for 10 minutes, and 150% for 1 minute.
Compact design minimizes floor space requirements.
Fully digital architecture with dual DSP control for precise operation.
Rated at a 0.9 output power factor to deliver higher usable power.
Supports leading power factor loads without kW derating under specified conditions
Online double-conversion UPS with IGBT-based PWM inverter
Wide input voltage tolerance of ±20%
Wide input frequency range from 45 Hz to 65 Hz
Designed to handle demanding load conditions, including:High crest factor loads, 100% non-linear loads, 100% unbalanced loads
Built-in maintenance bypass for enhanced serviceability
Front access design for easy spare replacement and preventive maintenance
Easy dual-bus configuration architecture
Document & Downloads
Liebert GXT MT+ 1/2/3Kva
The Liebert GXT MT+ Series comprises true double-conversion online UPS systems available in 1, 2, and 3 kVA capacities. These units provide complete isolation between input and output, ensuring total protection of connected loads. Ideal for data networks, small data centers, and VoIP applications, the systems also support hot-standby configurations, making them well suited for critical environments such as banking applications.
Best Suited for:
Education Data
Center/Colocation/Hosting
Construction and Engineering
Government
Healthcare
Manufacturing
Features
IGBT-based rectifier design
True online double-conversion UPS with DSP control technology for high performance and reliability
New graphical LCD display providing real-time UPS status, alarms, fault diagnostics, and troubleshooting support
Double-conversion efficiency of up to 90%
Active input power factor correction up to 0.99
0.8 output power factor
Wide input voltage range of 110–280 Vac, optimized for Indian operating conditions and improved battery performance
Adjustable battery charging current (1 / 2 / 4 / 6 A) to match different battery capacities and ratings.
Automatic 50/60 Hz frequency conversion capability.
Intelligent monitoring through standard RS232 and USB ports, with an extra slot for RS485, dry contact, or SNMP cards.
Built-in OVCD for enhanced system protection.
Configurable output voltage settings of 200 / 208 / 220 / 230 / 240 Vac.
Generator-compatible operation with a wide 40–70 Hz input frequency range.
Four-stage, extendable charging design to improve battery performance and service life.
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| GXT MT + CX 1 kVA | 1 kVA | 230 Vac | 208/220/230/240VAC | 220 mm | 145 mm | 282 mm | 9.8 kgs |
| GXT MT + CX 2 kVA | 2 kVA | 230 Vac | 208/220/230/240VAC | 220 mm | 145 mm | 397 mm | 17 kgs |
| GXT MT + CX 3 kVA | 3 kVA | 230 Vac | 208/220/230/240VAC | 318 mm | 190 mm | 421 mm | 27.6 kgs |
Liebert GXT MT+ 3x1 10/20kVA
The Liebert GXT MT+ Series consists of true online double-conversion UPS systems available in 6, 10, and 20 kVA capacities. These units provide full isolation between input and output, ensuring complete protection for connected loads. Well-suited for data networks, small data centers, and VoIP applications, they also support hot-standby configurations, making them ideal for critical environments such as banking and financial operations.
Features
IGBT Based Rectifier
True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and trouble shooting.
Double Conversion Efficiency upto 90%.
Active Input Power Factor Correction 0.99.
0.8 Output Power Factor.
Wide Input Voltage window (110 - 280 Vac) for Indian Environmental Condition and for Optimized Battery Performance.
Configurable Output Voltage (200/208/220/230/240 Vac.)
Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz).
4 Stage Extendable Charging Design for optimized Battery Performance.
Adjustable Battery Charging Current 1/2/4/6 Amps according to Battery Capacity and Rating.
50/60 Hz Automatic Frequency Converter Mode.
Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.
Inbuilt OVCD.
Document & Downloads

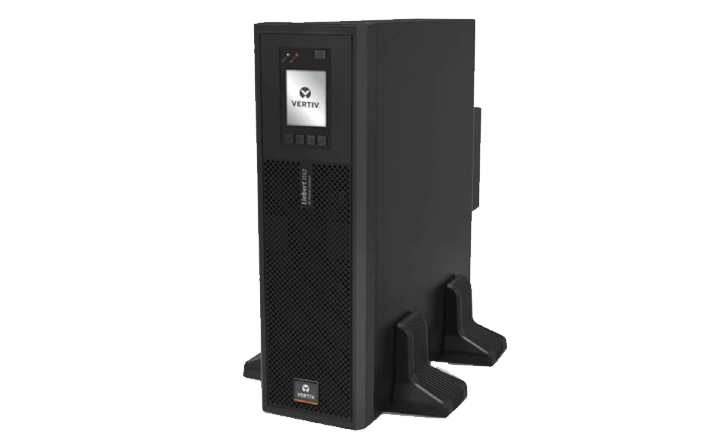

Liebert® GXT MT+ EX 6kVA/10kVA
The Liebert® GXT MT+ EX 6–10 kVA is a transformer-free UPS that delivers compact, efficient, and reliable power for modern electronic equipment. Its true double-conversion online design ensures uninterrupted, high-quality power even during mains AC failures.
Benefits
Ideal for critical applications including IT and communication equipment, VoIP systems, small to medium data centers, server rooms, ATMs, and more.
Features
IGBT-based rectifier design
True online double-conversion UPS with DSP control technology for high performance and reliability
Graphical LCD display providing real-time UPS data, alarms, fault diagnostics, and troubleshooting support
Double-conversion efficiency of up to 93%
Active input power factor correction up to 0.99
Rated at a 0.9 output power factor for higher usable power
Wide input voltage range ensures stable operation under fluctuating power conditions
Configurable output voltage options: 208 / 220 / 230 / 240 Vac
Compatible with generators across a 40–70 Hz input frequency range
Four-stage, extendable battery charging design for optimal battery performance
Adjustable battery charging current (1 / 2 / 4 / 6 A) to match battery capacity and ratings
Automatic 50/60 Hz frequency conversion mode
Intelligent monitoring via RS232 and USB, with an additional slot for RS485, dry contact, or SNMP cards
Built-in OVCD provides enhanced protection for the system
Document & Downloads
Liebert APS 5kVA - 20kVA
With the Liebert APS, you can future-proof your infrastructure while ensuring the continuous availability of critical systems—without compromising cost or energy efficiency.
Banking,
Financial and Insurance
Education
Healthcare
Government
Telecom
Retail and Wholesale
At the heart of your business lies your data center and the critical services it supports. With the Liebert APS UPS solution, you gain confidence that your essential IT operations—and your business—remain available and fully operational through power disruptions, fluctuations, and outages.
Benefits
Internal redundancy capability (N+2 / 20 kVA) enhances reliability and delivers multiple layers of power protection
No single point of failure: a fully redundant design ensures critical loads continue to receive conditioned power even if any system component fails
Configurable architecture allows customization of capacity and redundancy levels to meet specific application requirements
Fault-tolerant design enables power, battery, and control modules to automatically isolate themselves in the event of a fault, without compromising overall system integrity
Superior overload capability ensures continuous delivery of conditioned power during temporary overload conditions, eliminating unnecessary transfers to bypass
Internal wrap-around maintenance bypass and frame-level bypass with independent controls housed in separate assemblies enhance system reliability and availability
Features
High efficiency: 91.5–92% for 200–240 V transformer-free systems, 88.5–89.9% for transformer-based systems
Scalable design enables cost-effective expansion of power capacity or battery modules
Modular batteries, controls, and power components simplify maintenance and allow easy user replacement
Two-year factory warranty covering repair or replacement
Module-level redundancy removes the need for extra cabinets
Pre-configured, factory-tested units minimize installation time and cost
Compact all-in-one cabinet includes power modules, batteries, maintenance bypass, and distribution for maximum efficiency and availability
Integrated battery monitoring with temperature-compensated charging extends battery life and lowers replacement costs
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth |
|---|---|---|---|---|---|---|
| 10 bay (No Transformer)! | Depends on the 0/13 loading | 200/208/220/230/240 V AC | 5/4.5, 10/9.5/13.5 | 920 | 440 7 | 12 |
Liebert S600E 3x3 10/20kVA
The Liebert S600E is a fully digital, highly reliable double-conversion UPS that delivers clean and consistent power. Its high efficiency makes it ideal for a wide range of deployments, including IT racks, network closets, automation control systems, precision instruments, and small control rooms, as well as other edge applications.
Benefits
Inbuilt isolation transformer. Protects UPS and load from high voltage fluctuations.
Early Warning of UPS System Status. Multiple audible and visual alarms immediately alert you to critical issues.
Periodic Battery Testing. Provides automatic and manual self-diagnostic battery testing for peace of mind.
Power-Factor Correction. Prevents noise, harmonics, and distortion from being passed on to connected loads or from being fed back to the utility.
Lightning and Surge Protection. The transient voltage surge suppresion circuitry inside the Liebert S600E provides additional protection for the connected equipment.
Wide Input Voltage Window. Prolongs battery life by allowing the UPS to maximize the use of utility power before transferring to the battery when the input voltage exceeds specified limits.
Wide Input Voltage Window. Prolongs battery life by allowing the UPS to maximize the use of utility power before transferring to the battery when the input voltage exceeds specified limits.
Features
Inbuilt isolation transformer for enhanced protection
Unity output power factor for maximum usable power
Efficiency greater than 91% with the built-in transformer
Operates reliably at temperatures from 0 to 50 °C
Configurable battery options to suit different requirements
Supports parallel operation of up to four units
Compatible with lithium-ion (Li-ion) batteries
User-friendly graphical LCD display for easy operation
Integrated SNMP support for remote monitoring and management
Document & Downloads
Liebert SX 60kVA - 200kVA
Liebert SX™ features a full IGBT double conversion technology allowing it to provide extraordinary savings on installation and running costs, while at the same time providing first class load protection.
Benefits
No impact on upstream equipment during operation
Fully compatible with generator power sources
Optimized performance under unbalanced load conditions
Precise and stable load sharing in parallel configurations
Enhanced fault-clearing capacity, handling up to 300% of the inverter’s nominal current
Output power factor of 1
Symmetrical output power factor profile around zero
Intelligent double-conversion technology for maximum reliability and superior energy efficiency
Features
Permanent 100% kVA - no derating with any load (lagging or leading)
Optimum space/power ratio
Full compatibility with static transfer switches
Wide range of standard options including: Isolation transformer (integrated in UPS cabinet), System Bypass Switch and Synchronization Module (MBSM)
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| Liebert SX 60kVA | 60kVA | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1900 mm | 900 mm | 400 kgs |
| Liebert SX 100kVA | 100 | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1200 mm | 900 mm | 530 kgs |
| Liebert SX 80kVA | 80kVA | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1000 mm | 900 mm | 400 kgs |
| Liebert SX 120kVA | 120kVA | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1200 mm | 900 mm | 530 kgs |
| Liebert SX 160kVA | 160kVA | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1400 mm | 900 mm | 650 kgs |
| Liebert SX 200kVA | 200kVA | 400 (3 ph + N(1)) | 400 (380/415 Selectable, 3ph+N) | 1900 mm | 1400 mm | 900 mm | 700 kgs |
Emerson HPL Lithium-Ion Battery Energy Storage System
Designed by data center experts for data center applications, the Emerson HPL battery cabinet leverages advanced lithium-ion technology to deliver significant total cost of ownership savings. It offers longer battery life, reduced maintenance, simplified installation and servicing, safe operation, and transparent system information. Featuring proven lithium-ion nickel-manganese-cobalt (NMC) modules—widely used in the automotive industry—the Emerson HPL provides safe, reliable, and efficient energy to support critical operations whenever needed.
Benefits
Requires no battery replacement over its lifetime
Reduces installation costs
Lowers data center cooling expenses
Easy to install and maintain, minimizing business disruption
Simplified system for battery monitoring and management
Total solution from single supplier
Standard data center IT rack configuration
Internal power supply
User-friendly HMI display
Features
Supports Modbus/IP communication for seamless integration
Stores up to 10 years of operating data on the rack
Compact, lightweight design for easy deployment
Ships with preassembled battery modules for faster installation
Exceptional serviceability for simplified maintenance
Field-upgradable firmware for easy system updates
Document & Downloads
Liebert APM 18kW - 90kW
Prevent power interruptions and ensure the future flexibility and efficiency of your data center infrastructure with Liebert APM UPS.
Features
Quickly view operational status
Monitor UPS power and all meter readings
Follow menu-driven procedures for safe operation
Access status reports and historical data
Adjust programmable parameters with security-controlled access
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| Liebert APM 18kW | 18kW | 380/400/415Vac, 3-phase and 4 -wire | 380/400/415Vac, 3-phase and 4-wire | 2000 mm | 600 mm | 1100 mm | 228 kgs |
| Liebert APM 36kW | 36kW | 380/400/415Vac, 3-phase and 4-wire | 380/400/415Vac, 3-phase and 4-wire | 2000 mm | 600 mm | 1100 mm | 256 kgs |
Emerson HPL P1
The Emerson HPL P1 is engineered to provide safe, reliable, and cost-effective high-power energy that improves critical infrastructure performance over traditional value-regulated lead-acid systems. The Emerson HPL P1 offers powerful density in the smallest footprint that matches the look and feel of modern data centers. It houses 8–12 battery modules per rack.
Document & Downloads
Benefits
100 Ah (108 Ah), 409.6 V–614.4 V lithium iron phosphate (LFP) battery
Supports 8–12 battery modules per rack
Provides 51.2 kWh / 210 kW per rack with 13.5 min BOL runtime
Parallel operation supported for up to 9 battery cabinets
Compatible with both 2-wire and 3-wire battery systems
Built-in pre-charging and balancing circuitry
Intelligent 3-tier battery management system
Integrated parallel communication ports for coordinated operation
Designed for a 10-year service life
Liebert Network Power Switch I and II
The NPS-I and NPS-II switches enable instantaneous load transfer between two power sources, ensuring complete power supply redundancy up to the final connection point. They are ideal for applications with redundant power sources, whether from two UPS systems or a UPS with a bypass source.
Features
Utilizes power semiconductors as switching elements
Controlled by independent microcontrollers for reliable operation
Simple, rugged design for durability
User-friendly display and controls
Delivers exceptional performance
Optional MODBUS RS232/RS485 interface
Optional potential-free contacts for external integration
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|
| Liebert Network Power Switch I and II - NPS I R31 | NPS I R31 | > 99% | 132 mm | 440 mm | 450mm | 15 kg |
| Liebert Network Power Switch I and II - NPS I R32 | - | >98% | 132 mm | 440 mm | 450mm | 15 kg |
| Liebert Network Power Switch I and II - NPS II FL3 | - | > 98% | 1750-1950 mm | 800-1000 mm | 600 mm | 225-350 kg |
| Liebert Network Power Switch I and II - NPS II FL4 | - | > 97% | 1750-1950 mm | 800-1000 mm | 600 mm | 225-275 kg |
Liebert Network Power Switch
Emerson's Liebert NPS provides rapid switching between two independent AC power sources, for uninterrupted operation of critical electronic equipment. Liebert NPS proven power switching technology allows dual AC power paths all the way up to the critical load, for the ultimate in AC power system redundancy, power availability and fault tolerance.
Features
Supports both manual and automatic transfer operations
Sense and transfer time under 6 milliseconds
Hot-swappable electronic static switching module
Break-before-make switching for safe transfers
Selectable preferred power sources
Configurable auto or manual retransfer
Redundant control power supplies for increased reliability
Cooled via natural convection
Live mimic on hot-swappable unit to indicate load supply status and alarms
Make-before-break manual bypass switch for transferring load from static switch to direct
Source 1 Or Source 2
Isolated neutrals
Standard Voltage free contacts for alarm extension
Network Power Switch transfer time of six milliseconds is invisible to sensitive electronic equipment. (As per IEEE Standard 446 susceptibility curve for IT component)
Benefits
Designed for High Nines Availability
Break- Before - Make switching eliminates any possibility of connecting the two independent power sources together, even under fault conditions.
Diagnostics and transfer tests detect any potential switch failures before the problem becomes critical.
Rapid Operation
Automatic transfer protects the critical load as soon as a problem is detected on the power source by switching to the alternative supply.
Manual transfer allows power sources to be switched whenever required for scheduled source shutdowns or maintenance.
Document & Downloads
IBMU Battery Monitoring Unit
The IBMU is an Intelligent Battery Monitoring Unit engineered to enhance battery performance and reliability, safeguarding critical operations from potential cell deterioration. It continuously monitors each cell’s real-time voltage, internal resistance, temperature, charging and discharging current, ripple voltage, and hydrogen concentration.
Education
Government
Healthcare
Manufacturing
Professional Services
Retail and Wholesale
Telecom
Banking
Financial
Insurance
Document & Downloads
Features
Modular design for easy installation and management
Controls up to 960 batteries across six battery strings per controller module
Compatible with 2 V, 6 V, and 12 V lead-acid batteries
Monitors real-time cell internal resistance and temperature to detect capacity changes and prevent thermal runaway
Identifies faulty battery blocks quickly
Helps maximize UPS uptime
User-configurable alarm flags for proactive alerts
Supports SNMP and Modbus protocols for remote monitoring
Can be monitored and managed directly through the UPS display

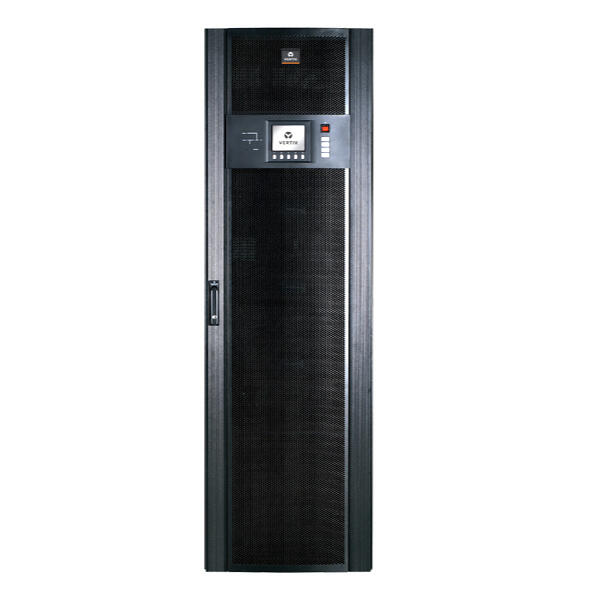

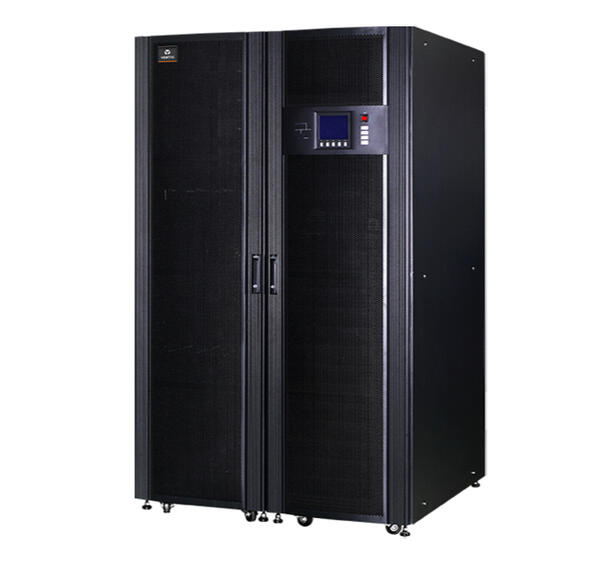

Liebert APM UPS, 30-600 kW
The Liebert APM is a versatile and modular, transformer-free UPS designed to operate with a maximum energy efficiency of up to 96.3% for the protection of medium to large-sized business-critical applications.
Features
Efficiency in double conversion exceeding 96%
ECO mode operation with efficiency up to 99%
Unity output power factor
Hot swappable modules
Modular redundancy as N+1 configuration
Distributed intelligence between modules
Four cabinet solutions (up to 150/300/400/600 kW)
Integrated autonomy for ratings up to 90 kW
600 kW maximum UPS system capacity
Hot swappable static bypass module (Liebert APM 50-600 kW only)
Benefits
High efficiency to lower total cost of ownership (TCO)
Delivers outstanding active power availability
FlexPower Technology™ allows capacity upgrades without increasing system footprint
Reduced mean time to repair (MTTR) and easy serviceability
Integrated parallel and load bus synchronization
Highly flexible for various runtime configurations
Shorter battery recharge times
Supports LIFE™ remote diagnostics and preventive monitoring
ETL-listed products qualify for 100% first-year capital allowance under the ECA scheme
Document & Downloads
Liebert GXT MT+ 1x1 6/10kVA
Liebert GXT MT+ 6kVA is a full featured transformer free UPS designed to offer compact efficient and reliable power to power thirsty modern electronic gadgets.
Features
IGBT-based rectifier for efficient and reliable power conversion
True online double-conversion with DSP control for high performance and stability
New graphical LCD display showing UPS data, alarms, and assisting in fault diagnostics and troubleshooting
Double-conversion efficiency up to 91%
Active input power factor correction of 0.99
0.8 output power factor
Wide input voltage range (110–280 V) optimized for Indian environmental conditions and battery performance
Configurable Output Voltage (200/208/220/230/240 Vac.)
Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz).
4 Stage Extendable Charging Design for optimized Battery Performance.
Adjustable Battery Charging Current 1/2/4/6 Amps according to Battery Capacity and Rating.
50/60 Hz Automatic Frequency Converter Mode.
Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.
Inbuilt OVCD.
Document & Downloads
Liebert GXT MT+ CX 16A
Liebert GXT MT+ 6kVA is a full featured transformer free UPS designed to offer compact efficient and reliable power to power thirsty modern electronic gadgets.
Features
IGBT-based rectifier for enhanced efficiency and performance
True online double-conversion UPS with DSP control technology, ensuring high reliability and superior performance
Advanced graphical LCD display showing UPS status, alarms, and supporting fault diagnosis and troubleshooting
Double-conversion efficiency up to 92%
Active input power factor correction up to 0.99
0.8 output power factor
Wide input voltage range (110–280 Vac), optimized for Indian operating conditions and improved battery life
Configurable output voltage (200 / 208 / 220 / 230 / 240 Vac)
Generator compatible, supporting wide input conditions
Operates across a wide input frequency range of 40–70 Hz
Eight-stage extendable battery charging design for optimal battery performance
Adjustable battery charging current (2 / 4 / 6 / 8 / 10 / 12 / 14 / 16 A) to match battery capacity
Automatic 50/60 Hz frequency converter mode
Intelligent monitoring via RS232 and USB, with an expansion slot for RS485, dry contact, or SNMP cards
Built-in Over Voltage Cut-Off Device (OVCD) for protection
Available in 16 A models ranging from 1000 VA to 3000 VA
Document & Downloads
Liebert GXT MTX+ 6KVA
Liebert GXT MTX+ 6 kVA is a full featured Transformer based UPS designed to offer compact efficient and reliable power thirsty modern electronic gadgets.
Features
IGBT Based Rectifier.
True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and troubleshooting.
Double Conversion Efficiency up to 84%.
ECO Mode Efficiency upto 94%.
Active Input Power Factor Correction 0.99.
0.8 output power factor
Wide input voltage range (110–300 V) optimized for Indian conditions and battery performance
Adjustable battery configuration (16 / 18 / 20 cells) with digital charger and selectable charging current (0.5–6 A) via LCD display
Three-stage extendable charging design for optimal battery performance
Automatic 50/60 Hz frequency converter mode
Intelligent monitoring via RS232/USB, with an additional slot for RS485, dry contact, or SNMP card
Remote monitoring with multiple server shutdown support, compatible with all major operating systems
CE and RoHS compliant
Document & Downloads
Liebert® GXT MT + CXi
The Liebert® GXT MT+ CXi Series are true online double-conversion UPS systems available in 1, 2, and 3 kVA capacities. These units provide full load protection against mains irregularities, making them ideal for data networks, small data centers, and VoIP applications. With support for hot-standby configurations, they are well suited for critical environments such as banking operations.
Features
IGBT-based rectifier and inverter for efficient and reliable power conversion
True online double-conversion UPS with DSP control technology, delivering high performance and reliability
Advanced graphical LCD display providing UPS status, alarms, and support for fault diagnostics and troubleshooting
Double-conversion efficiency up to 90%
Active input power factor correction up to 0.99
0.8 output power factor
Wide input voltage range (110–280 V) optimized for Indian conditions and battery performance
Configurable output voltage: 200 / 208 / 220 / 230 / 240 V
Generator-compatible with a broad input frequency range of 40–70 Hz
Four-stage extendable battery charging design for improved battery life
Adjustable battery charging current (1 / 2 / 4 / 6 A) based on battery capacity
Intelligent monitoring via RS232 and USB, with an additional slot for RS485, dry contact, or SNMP card
Built-in Over Voltage Cut-Off Device (OVCD) for protection
Proudly manufactured in India
Document & Downloads
Liebert® GXT MT+ CX4 1K SB - 1 kVA
The Liebert® GXT MT+ CX4 1K SB is a true double-conversion online UPS delivering 1 kVA capacity with an inbuilt battery. It provides complete isolation between input and output, ensuring total protection of connected loads from mains disturbances. This makes the system an ideal power solution for Work From Home setups, data networks, small data centers, and VoIP applications.
Features
IGBT-based rectifier for efficient and reliable power conversion.
True online double-conversion UPS with DSP control technology, ensuring high performance and dependable operation.
Advanced graphical LCD display provides real-time UPS status, alarms, and supports easy fault diagnosis and troubleshooting.
Double-conversion efficiency of up to 89%.
Active input power factor correction up to 0.99.
Output power factor of 0.8
Wide input voltage range (110–280 V) optimized for Indian conditions and battery performance
Configurable output voltage options: 200 / 208 / 220 / 230 / 240 V
Generator-compatible with a wide input frequency range of 40–70 Hz
Automatic 50/60 Hz frequency conversion
Intelligent monitoring via RS232 and USB, with an additional slot for RS485, dry contact, or SNMP card
Built-in Over Voltage Cut-Off Device (OVCD) for enhanced protection
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Efficiency | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|
| GXT MT+ CX4 1K SB | 230 Vac 200/208/220/230/240VAC | up to 89 ( on AC to AC mode@ 100% ) | 220 mm | 145 mm | 397 mm | 17 kg |
Liebert® Powerbank 600 RT 3 X 1
In today’s rapidly evolving business landscape, basic power protection is no longer enough. With digital technologies constantly transforming operations, uninterrupted business continuity is essential. Downtime in critical systems—or delays in restoring them—can have serious operational and financial consequences. Organizations need a robust, high-performance UPS that provides reliable, round-the-clock power protection for a wide variety of applications.
Available in different wattage variations, Liebert® Powerbank 600 RT 3 X 1 is ideal in edge of networks, light industrial applications and data centers, blending easily into any virtualized environment and providing comprehensive power protection at lower operating costs.
Document & Downloads
Emerson Liebert® AF4
Emerson proudly introduces its first product line-up "Emerson Liebert® AF4" an Active Harmonic Filter (AHF) to cater to the present industrial needs.
Mitigates harmonics to keep plant current THD within IEEE 519-1992 limits through full dynamic compensation
Maintains unity power factor with adaptive, fully dynamic compensation for load variations
Eliminates odd harmonics up to the 51st order; individual harmonics can be programmed as needed
Ensures balanced, sinusoidal current draw from the electrical bus
Compact, lightweight design with quiet operation for optimized performance
Typically requires no input chokes with VFDs when load current THD is below 40%
High energy efficiency via intelligent real-time switching loss minimization
3P4W support for load neutral current with zero neutral current on the source/EB side
Document & Downloads
Model Specifications Overview
| Models | Height | Width | Depth | Weight |
|---|---|---|---|---|
| 100 A | 1000 / 1325 mm | 600 mm / 700 mm | 640 mm / 750 mm | 138 kg / 190 kg |
| 200 A | 1425 mm | 700 mm | 750 mm | 240 kgs |
| 300 A | 1500 mm | 1150 mm | 750 mm | 410 kgs |
Emerson Liebert® ITA2 30 - 40 kVA
The Emerson Liebert® ITA2 UPS provides efficient, reliable, and cost-effective three-phase power protection for critical loads up to 40 kVA. It can be installed in either rack or tower configurations and features scalable battery runtimes, a high output power factor, and an optional maintenance bypass cabinet. Easy to install and operate, it is ideal for IT racks, network closets, automation and control systems, precision instruments, and small edge control rooms. Optional lithium-ion battery cabinets are also supported.
Benefits
Reliability in a Compact Footprint
High Availability
Early Warning of UPS System Status
Periodic Battery Testing
Power-Factor Correction
Lightning and Surge Protection
Wide Input Voltage Window
Document & Downloads
Model Specifications Overview
| Models | Power Rating | Input Voltage | Output Voltage | Efficiency |
|---|---|---|---|---|
| ITA-05k00AL1102P00 | 5kVA | 220/230/240VAC 1-Phase, 2 Wire | 220/230/240 (1-phase) | Up to 95.5% |
| ITA-06k00AL1102P00 | 6kVA | 220/230/240VAC 1-Phase, 2 Wire | 220/230/240 (1-phase) | Up to 95.5% |
| ITA-10k00ALA102P00 | 10kVA | 220/230/240VAC 1-Phase, 2 Wire380/400/415VAC 3-Ph | 220/230/240 (1-phase) | Up to 95.8% |
| ITA-16k00AL3A02P00 | 16kVA | 220/230/240VAC 1-Phase, 2 Wire 380/400/415VAC 3-Ph | 220/230/240VAC (1-Phase), 380/400/415VAC (3-Phase | Up to 96.2% |
| ITA-20k00AL3A02P00 | 20kVA | 380/400/415VAC 3-Phase, 4 Wire 220/230/240VAC (1-Phase), | 380/400/415VAC (3-Phase | Up to 96.2% |
| ITA-30k00AL3302P00 | 30kVA | 380/400/415VAC 3-Phase, 4 Wire | 380/400/415VAC (3-Phase) | Up to 96.5% |
| ITA- 40k00AL3302P00 | 40 kVA | 380/400/415 VAC 3-Phase, 4 Wire 380/400/415 VAC (3-Phase) | Up to 96.5% |

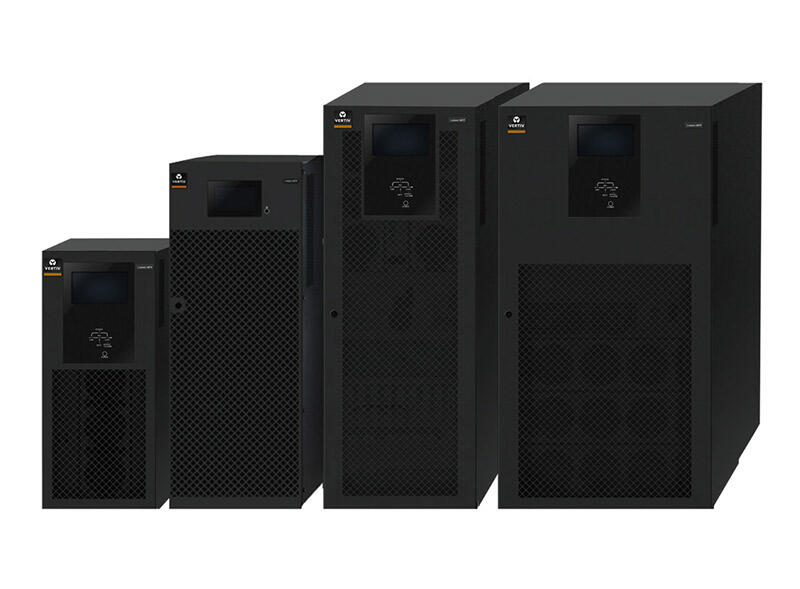

Emerson Liebert® MTP UPS
The Emerson Liebert® MTP UPS is a high-performance, reliable power protection solution designed for critical applications. Combining superior efficiency with a compact footprint, it optimizes floor space and reduces energy costs. Engineered for exceptional reliability, it provides continuous power to safeguard mission-critical equipment, minimizing downtime and data loss. The Liebert® MTP UPS enhances operational efficiency, supports productivity, and delivers complete peace of mind.
Benefits
Compact footprint for space-efficient deployment
Up to 95.5% efficiency in double-conversion mode
Unity output power factor
Fast battery charging for minimal recharge time
Up to 98.5% efficiency in ECO mode
Features
Compact design for space-saving installation
Up to 95.5% efficiency in double-conversion mode
Unity output power factor for maximum usable power
Fast battery charging for minimal recharge time
Up to 98.5% efficiency in ECO mode
Document & Downloads
